Why Aerospace Engineers Specify Monel 404 Bar for Waveguides?

Aerospace engineers always choose Monel 404 bar for waveguide uses because it is very good at being electromagnetically clear, resistant to rust, and stable mechanically. Additionally, this nickel-copper metal works very well in high-frequency communication systems and keeps its shape even when exposed to high temperatures and high atmospheric pressures, like in space. The unique metallurgical makeup of the material makes sure that signals travel reliably with little interference. This makes it the best choice for important communication and radar systems in modern spaceships and airplanes.

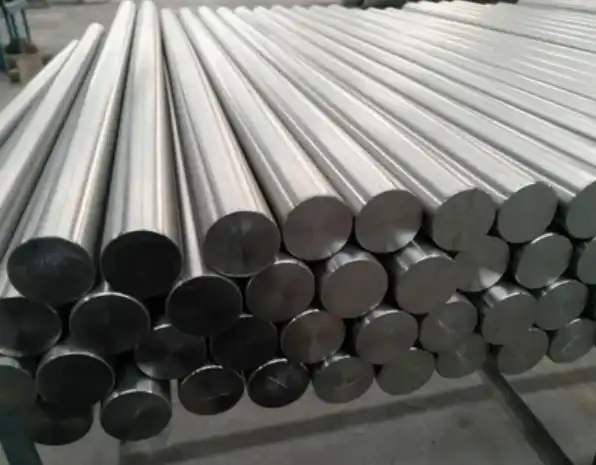

Understanding Monel 404 Bar – Composition and Properties

Monel 404 is a carefully designed nickel-copper metal that has about 66% nickel, 31.5% copper, and carefully controlled amounts of iron, manganese, and carbon. The combination of chemicals in this way makes a mechanical base that works very well in a wide range of tough situations.

Chemical Composition and Metallurgical Excellence

This superalloy has unique properties that set it apart from other materials because of the exact balance of its elements. The high nickel content makes it very resistant to rust, and the copper makes it very good at conducting heat and electricity. Adding small amounts of iron and manganese to a combination makes it stronger without taking away from its main benefits.

This nickel-copper metal is very flexible when it comes to different temperature ranges. It doesn't rust and has good tensile qualities when it's at room temperature. Even at high temperatures of up to 300°C (570°F), the material keeps its strength and stiffness in good shape. It stays flexible and tough even at freezing temperatures, which makes it good for use in space, where temperatures can change very quickly.

Mechanical Properties and Performance Characteristics

The specs for the material show that Monel 404 bar has great mechanical properties that aircraft engineers really value. This metal is structurally stable under tough conditions. It has a melting point range of 1300–1350°C and a mass of 8.83 g/cm³. Tensile strength of 550–750 MPa and yield strength of 240–380 MPa make sure that parts can handle a lot of mechanical stress.

When it comes to aerospace uses, where weight reduction must match with performance needs, these mechanical properties become very important. An extension rate of 35–45% means that the material is very flexible, which lets it be formed in a lot of different ways during the making process. With this mix of strength and flexibility, engineers can make complex waveguide shapes that keep their structural integrity.

Why Monel 404 Bar is the Go-To Material for Waveguides in Aerospace？

When used in aircraft, waveguide systems need materials that can work effectively in harsh situations while still having the right electromagnetic properties. This nickel-copper alloy's special properties meet these important needs in a number of ways that improve performance.

Electromagnetic and Thermal Performance

Because it is dense and doesn't change much at room temperature, the material is perfect for high-frequency uses where data purity is very important. Aerospace waveguides need to be able to work across a wide range of frequencies while still performing the same way every time. Because of its thermal expansion qualities, the metal keeps its shape, so signal distortion from changes in geometry caused by temperature is avoided.

Modern aircraft systems work in places where temperatures change quickly and there are big differences in temperature. Because this superalloy can keep its mechanical properties across a wide range of temperatures, waveguide parts will continue to work properly during re-entry into the atmosphere, high-altitude flying, and space activities. The thermal conductivity of the material also helps high-power RF devices get rid of heat.

Comparative Analysis with Alternative Materials

When it comes to waveguide uses, this nickel-copper alloy is clearly better than other aircraft materials. While Monel 400 is very good at resisting rust in general, the 404 version has better mechanical qualities that make it better for use in structures. Titanium metals are light, but they don't have the right electromagnetic qualities to work well as waveguides.

Inconel metals work well at high temperatures, but they are hard to machine and cost a lot. Because Monel 404 bar material's qualities are well-balanced, aircraft engineers can get the best performance, ease of manufacture, and cost-effectiveness. This balance is very important when making systems that need to be both electromagnetically perfect and mechanically reliable.

Machining and Heat Treatment of Monel 404 Bar for Optimal Use

When making aircraft waveguide parts, it's important to pay close attention to the machining settings and heat treatment steps. Because this metal has special qualities, it needs to be processed in a certain way to get the best performance and accuracy in measurements.

Machining Best Practices and Surface Finishing

To machine this nickel-copper metal well, you need to know how it hardens during the process. When cutting, the material likes to become work-hardened very quickly, so you need to use sharp tools and cut at the right speed. When the right conditions are met, conventional cutting methods can produce very smooth surfaces.

Surface treatment options, such as polished, peeled, and turned surfaces, give you choices for a wide range of uses. Each way of finishing has its own benefits that depend on the final use. For general uses, turned surfaces are accurate in terms of size, while polished surfaces are better for high-performance waveguides because they have better electromagnetic properties.

Heat Treatment for Enhanced Properties

The microstructure and dynamic qualities of this superalloy can be improved through planned heat treatment processes. When complicated forming operations need to be done, annealing treatments can help ease machining stresses and make the metal more flexible. Stress-relieving processes done at controlled temperatures help keep the dimensions of precision parts stable.

To get the qualities you want, the heat treatment method needs to carefully control the temperature and the rate at which it cools. The right heat treatment can make the material more resistant to stress-corrosion cracking while keeping the electromagnetic qualities that are needed for waveguide uses. When parts have to meet strict aircraft quality standards, these steps become even more important.

Sourcing and Procurement Insights for Monel 404 Bar in Aerospace Industry

To strategically buy high-performance metals, you need to know how the supply chain works, what quality standards are needed, and how to get certified. Aerospace makers have to find the right mix between how well materials work, how easy they are to get, how much they cost, and how well they follow the rules for their business, such as with Monel 404 bar.

Supplier Selection and Quality Standards

To find suitable providers, you have to look at their manufacturing skills, quality processes, and compliance with certifications. Materials used in aerospace must meet the standards set by ASTM B164 and UNS N04404, as well as other industry-specific standards. Suppliers must show that materials can be tracked throughout the whole production process and give full certifications of the materials they supply.

Quality certifications, such as the Material Test Certificate (MTC) and SGS test results, are important proof for aircraft uses. These papers show that the chemical make-up, mechanical qualities, and manufacturing meet certain standards. The paperwork becomes very important for keeping the airworthiness certificate and meeting government rules.

Product Specifications and Customization Options

Standard sizes for these products run from 5 to 300 mm in diameter and from 300 mm to 6000 mm in length, which should meet most aircraft waveguide needs. When makers can offer customized sizes and processing, they can get the most out of their materials and lose less. This freedom is especially useful when making complex aircraft systems that need to follow strict geometry rules.

Following international standards like ASTM, JIS, AISI, GB, DIN, and EN makes sure that the global supply chain works well together. There are a lot of standard choices, which gives buyers a lot of freedom while keeping quality the same across areas and suppliers. Standardization makes the approval process easier and lowers the risks in the supply chain for companies that make aircraft equipment.

Ensuring Quality and Trust: Why Choose TSM Technology's Monel 404 Bars?

Because TSM Technology has been dealing internationally for 14 years and is dedicated to quality excellence, it has become a reliable source for high-quality nickel alloys like Monel 404 bar. Our wide range of manufacturing skills and quality systems meet the exact needs of aircraft uses while also providing dependable support for the supply chain.

Manufacturing Excellence and Quality Assurance

Our production base is made up of three factories with more than 100 tools and eight production lines, which can make 300 tons of goods every month. This large production capacity makes sure that materials for big flight projects are always available and that quality standards are always met. Vacuum induction melting and continuous casting are two of our advanced manufacturing methods that we use to make sure that the makeup of our products is always just right.

Our dedication to aircraft quality standards is shown by the fact that our quality assurance system includes ISO 9001/13485, AS9100D, and NADCAP certifications. Each output batch goes through a lot of tests, such as non-destructive testing, chemical makeup analysis, and mechanical property verification. This multi-level inspection method makes sure that every part meets the standards before it is sent out.

Value-Added Services and Customer Support

In addition to providing materials, we are dedicated to our customers' success and offer expert help and customization services. We give engineers free samples so they can see how well the material works before committing to large orders. This service lowers the risks of buying and makes sure that materials work with specific application needs.

We can offer materials that are best for certain aerospace uses because we can process them in a way that is tailored to those needs. Our engineering team works closely with customers to come up with custom solutions, whether they need special surface processes, changes to the size or shape of the part, or special mechanical features. This method of working together has led to great relationships with aerospace companies all over the world.

Conclusion

The aircraft industry specifies Monel 404 bar for waveguide uses because it has a unique mix of electromagnetic qualities, mechanical strength, and resistance to the environment. This nickel-copper alloy meets the complicated needs of current aerospace systems that must continue to work reliably in harsh circumstances. Because the material has been used successfully in tough situations in the past and responds well to heat treatment, it is the best choice for important waveguide components. As aircraft technology keeps getting better, it becomes more and more important for mission success that materials can perform consistently in a wide range of working conditions.

FAQ

1.What advantages does Monel 404 offer over stainless steel for aerospace waveguides?

When it comes to electromagnetic qualities, Monel 404 is better than stainless steel. It can send signals more clearly and with less confusion. The nickel-copper mix makes it more resistant to rust in aircraft settings while keeping its good mechanical qualities at all temperatures. The material is also thermally stable, which makes sure that the dimensions stay accurate even when the temperature changes quickly, which is common in aircraft use.

2.Can Monel 404 bars be customized for specific waveguide geometries?

As far as tailoring goes, you can change the diameter, the length, and the surface finish. We can make things with widths from 5 to 300 mm and lengths from 300 to 6000 mm. If you need a different size, just let us know. One way to finish the surface is to turn, peel, or clean it to meet certain mechanical and electric needs.

3.What certifications are available for aerospace applications?

All of the products come with full MTC and SGS test results that prove they meet the requirements of ASTM B164 and UNS N04404. Depending on what the customer needs, we can provide more aircraft certifications. Our AS9100D approval makes sure that the quality standards for manufacturing meet aircraft standards at all stages of production and delivery.

Partner with TSM Technology for Premium Monel 404 Bar Solutions

TSM Technology is ready to help you with your aerospace waveguide projects by providing you with top-quality nickel-copper alloy goods backed by the best quality guarantee in the business. Because we can make a lot of different things and have been dealing internationally for 14 years, you can trust us to be your reliable Monel 404 bar supplier for tough aerospace uses. We want procurement professionals and engineering teams to experience our dedication to greatness through individual advice and material solutions that are made to fit your needs. Get in touch with our technical experts at info@tsmnialloy.com to talk about your project needs and find out how our high-quality alloy goods can improve the performance of your flight system.

References

American Society for Testing and Materials. "Standard Specification for Nickel-Copper Alloy Rod, Bar, and Wire." ASTM B164-19, 2019.

Aerospace Industries Association. "Material Specifications for Aerospace Waveguide Systems." AIA Technical Report AIA-2023-WG, 2023.

International Nickel Study Group. "Properties and Applications of Nickel-Copper Alloys in Aerospace Engineering." INSG Technical Bulletin, Vol. 45, 2022.

Society of Aerospace Engineers. "Electromagnetic Materials for High-Frequency Applications in Aircraft Systems." SAE Technical Paper Series, SAE-2023-01-1456, 2023.

National Institute of Standards and Technology. "Thermal and Mechanical Properties of Monel Alloys for Aerospace Applications." NIST Special Publication 1800-34, 2022.

Aerospace Material Specification Committee. "Heat Treatment Procedures for Nickel-Copper Alloys in Waveguide Applications." AMS Technical Standard AMS-4675B, 2023.
