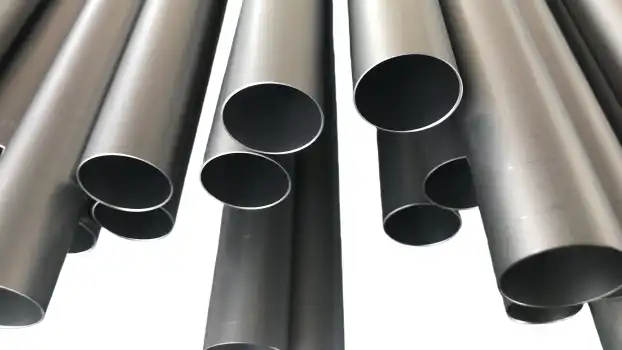

Nickel Alloy Thin Wall Pipe

Your Premier Nickel Alloy ThinWall Pipe Manufacturer & Supplier

Nickel Alloy Thin Wall Pipes from TSM Technology are manufactured through a fully integrated production chain covering alloy melting, forging, and cold & hot working, ensuring stable material quality and consistent dimensional accuracy. Leveraging advanced cold drawing, cold rolling, and precision forming processes, our thin wall pipes achieve excellent straightness, uniform wall thickness, and smooth surface finish, meeting the strict requirements of high-precision industrial systems. Compliant with ASTM, ASME, and EN standards, and produced under internationally recognized certifications including ISO 9001, AS9100D, and AS9120, TSM nickel alloy thin wall pipes are widely applied in aerospace, petrochemical processing, seawater desalination, new energy equipment, and high-end medical systems. These applications highlight the reliability, versatility, and long-term performance of our nickel alloy tubing solutions in demanding service environments.

Core advantages of products



Precision cold rolling and cold drawing technology: wall thickness uniformity reaches ±5%, inner wall roughness ≤0.8μm.
Material diversity:
Inconel® series: 625/718/800H (resistant to 980℃ oxidation environment)
Hastelloy® series: C276/C22 (resistant to strong acid and wet chlorine corrosion)
Monel® series: 400/K500 (resistant to seawater and hydrofluoric acid corrosion)
Full process detection: probe flaw detection (UT), eddy current detection (ET), porosity test (HV30)

Standard Dimensions:



Outer Diameter: 6.0 – 114 mm

Wall Thickness: 0.5 – 15 mm

Length: Up to 24,000 mm (Custom sizes available)

Special processing: welding/seamless, flaring, flanging.

Grades Available

Inconel：ASTM B163, ASTM B167, ASTM B444, AMS 5581, AMS5589/5590, AMS5582/5583.
Hastelloy：ASTM B622.
Incoloy：ASTM B163, ASTM B407, ASTM B423.
Monel：ASTM B161, ASTM B163.
Nickel：ASTM B161,ASTM B163.

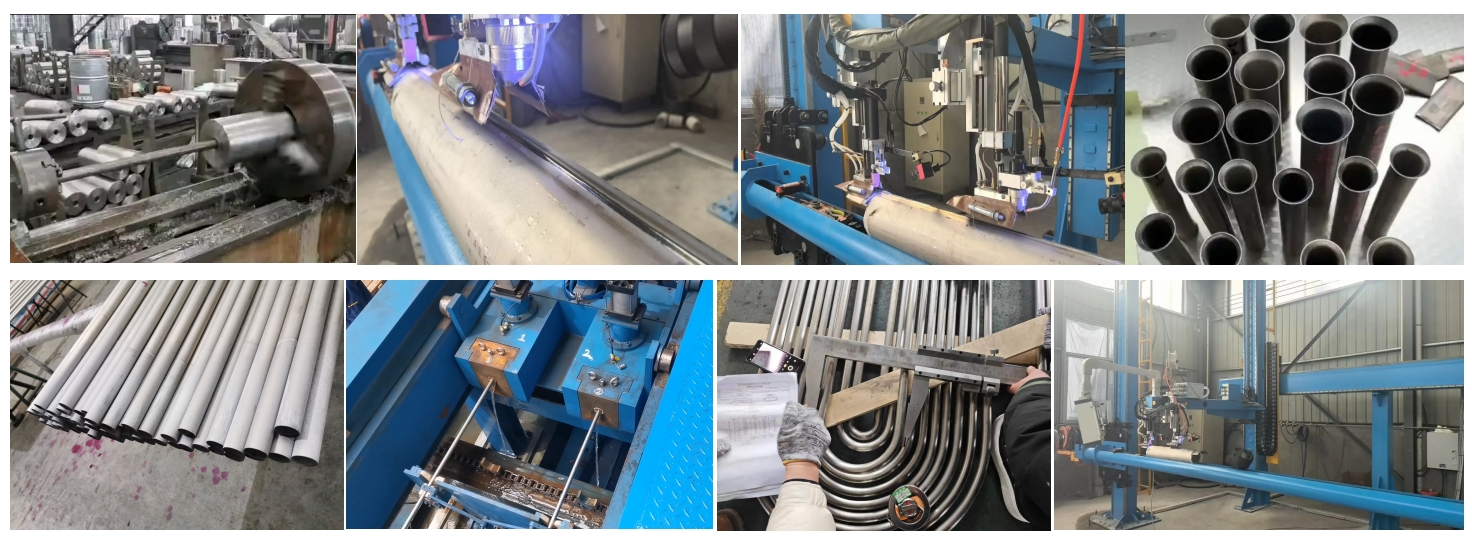

Quality control system

Certification: AS 9120, PED 2014/68/EU.
Test report: Material report (MTC 3.1/3.2) is provided for each batch, including spectral analysis and metallographic test data
Traceability: Laser marking batch number, supporting raw material smelting furnace number traceability

Value-added service

Technical consultation: Free medium compatibility analysis and material selection suggestions
Processing support:
Flat end/groove treatment
Three-dimensional bending pipe (bending radius ≥ 2.5D)
Surface coating (aluminum infiltration, nickel plating optional)
Logistics guarantee: Anti-rust vacuum packaging, export wooden box reinforcement

Applications – Industries That Rely on Our Nickel Alloy Thin Wall Pipes

Aerospace: Engine components, heat exchangers, and fuel lines.
Energy: Nuclear power plants, gas turbines, and offshore platforms.
Chemical & Petrochemical: Heat exchangers, reactors, and piping systems.
Medical Devices: Surgical instruments, implants, and diagnostic equipment.
Marine & Oil/Gas: Corrosion-resistant pipelines, condensers, and heat exchangers.

Need pipes for your project? Contact us now for a custom quote!

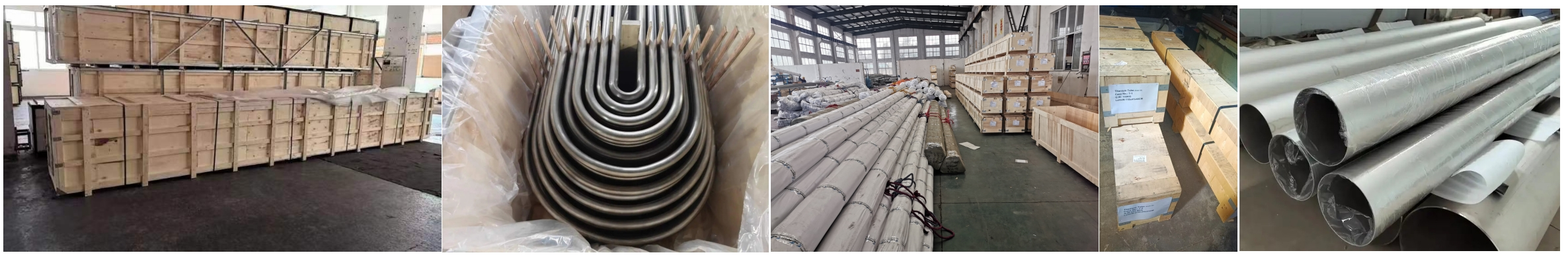

Package

FAQ

Q: What are the lead times for orders?
A: Standard sizes are available for immediate shipment, while custom orders take 2-4 weeks depending on specifications.

Q: Do you provide certifications?
A: Yes! Our products meet ASTM, ASME, AMS, PED, NACE standards. Mill test certificates (MTC) are provided.

Q: Can I request samples before placing a bulk order?
A: Absolutely! We offer sample orders for quality verification. Contact us for details.

Q: What payment methods do you accept?
A: We accept T/T, L/C, and flexible payment terms for bulk orders.
