Name: Nickel 201 Sheet
SKU: N/A

Nickel 201 Sheet Manufacturer & Supplier

Nickel 201 Sheets from TSM Technology are manufactured for applications that demand high purity, excellent corrosion resistance, and stable performance at elevated temperatures. Nickel 201 Sheet is a commercially pure wrought nickel material (Ni ≥ 99.6%) with ultra-low carbon content, offering outstanding resistance to corrosion, oxidation, and high-temperature embrittlement. Its excellent thermal conductivity and stable mechanical properties make it an ideal choice for demanding environments where material purity and long service life are critical.

Founded in 2011, TSM Technology has become a globally recognized supplier of nickel alloy materials, serving customers in chemical processing, aerospace, electronics, energy, and other high-performance industries. Headquartered in Shaanxi, China, TSM operates a 60,000 m² advanced production base equipped with facilities for vacuum melting, hot forging, and precision rolling. With 3 manufacturing plants, 8 production lines, and over 100 sets of equipment, we maintain full-process control from raw material melting to finished sheet products, ensuring consistent quality, precise thickness tolerance, and reliable delivery.

plates

sheets

coil

strip

Dimensions:

Thickness：Hot rolled:3.0-180mm，Cold rolled:0.15mm-10mm

Width：10~2000mm

Length: 1000 mm- 6000 mm or as the customer's requirement

Finish: 2B, No.1, No.2, No.4, BA, 6K, Mirror Finished, 8K

Standards and Specifications

TSM Nickel 201 Sheets are produced in full compliance with internationally recognized material standards. The material conforms to ASTM B160 / ASTM B161 / ASTM B162 / ASTM B366 requirements for wrought nickel plate, sheet, and strip, ensuring consistent chemical composition and mechanical performance. The corresponding UNS designation is N02201, indicating commercially pure nickel with controlled low carbon content for improved high-temperature stability.

For European projects, Nickel 201 Sheets can be supplied in accordance with applicable EN standards upon request, with dimensional tolerances and inspection criteria aligned to customer or project-specific specifications. All products are manufactured under a certified quality management system, with full traceability from raw material melting to finished sheets.

Mill Test Certificates (EN 10204 3.1), chemical analysis reports, and mechanical property records are available to support engineering approval and procurement compliance.

Incoloy 201(N02201/2.4060/Nickel201)
Chemical Composition	%	Ni		Fe	C	Mn		S	Si		Cu
	min	Remaining amount
	max	Remaining amount		0.4	0.02	0.35		0.01	0.35		0.25
Physical Characteristics	Density		8.89g/cm³
	Melting point		1440℃
Minimum mechanical properties of alloys at room temperature	Alloy state		tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elonga A5%
	Inconel 201		60-85				15-45			35-55

Product Details

Material Characteristics

High Purity: 99.6% nickel ensures superior performance.

Excellent Corrosion Resistance: Performs well in alkaline and acidic environments.

Thermal & Electrical Conductivity: Ideal for applications requiring efficient heat and electrical transfer.

Non-Magnetic & Low Gas Content: Suitable for electronic and high-purity applications.

Good Weldability & Fabrication: Easy to form and join using conventional techniques.

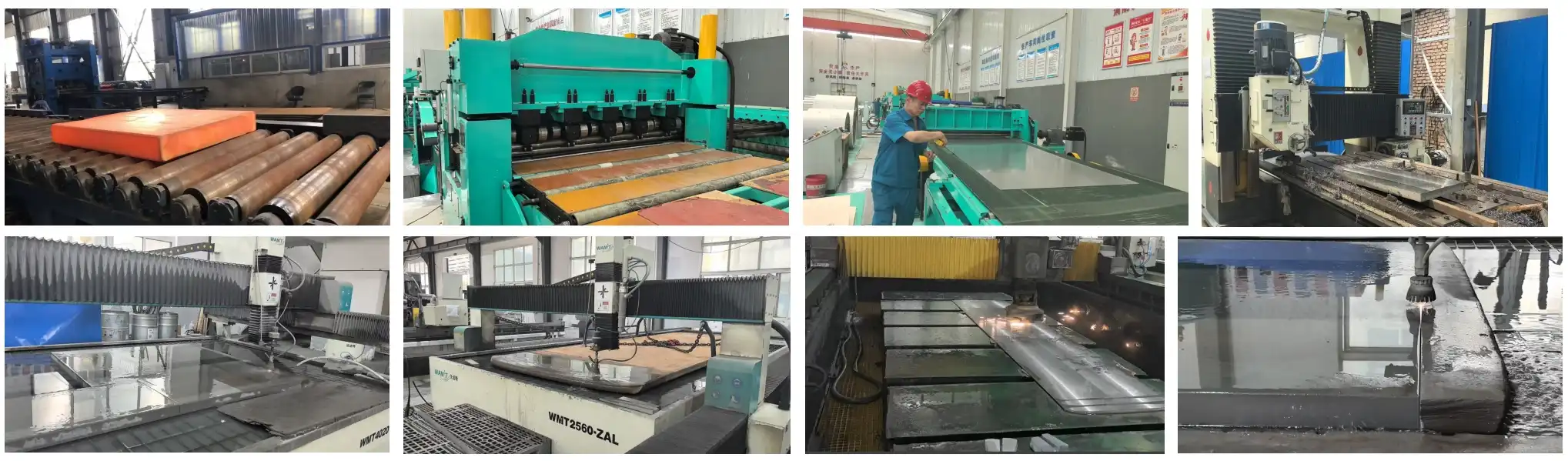

Production process

Applications of Nickel 201 Sheet

Nickel 201 Sheet is widely used in various industries, including:

Aerospace: Components exposed to extreme temperatures and corrosive environments.

Chemical Processing: Tanks, piping, and heat exchangers handling corrosive chemicals.

Electronics: Battery connectors, lead wires, and semiconductor fabrication.

Energy Sector: Nuclear and solar energy applications requiring high-performance materials.

Marine & Offshore: Components in saltwater environments due to excellent corrosion resistance.

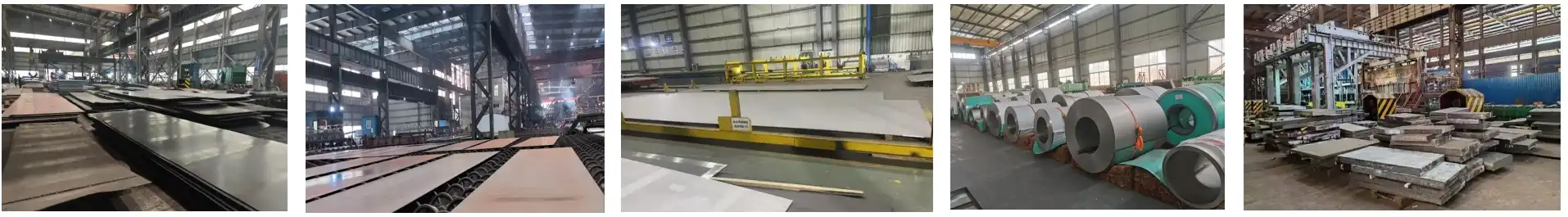

Factory

Our Service

We are looking for partners around the world to expand our business.

Customized Solutions

Provide customized nickel plate production services according to your specific needs. Whether it is size, thickness, shape, or special surface treatment requirements.

Quality inspection

Comprehensive quality inspection ensures that each nickel plate meets international standards. At the same time, provide detailed quality inspection reports and certification documents.

Technical support

Equipped with a professional technical team, we provide you with technical support and consulting services in nickel plate application, processing, welding, etc.

Reliable Global Supply

With global distribution capabilities, we can provide reliable logistics solutions no matter where the customer is

Processing value-added service

Provide further processing services for nickel plates, such as cutting, punching, welding, surface treatment, etc.

Small batch trial production service

Provide free samples or small batch trial production services to help you verify product performance and reduce trial and error costs.

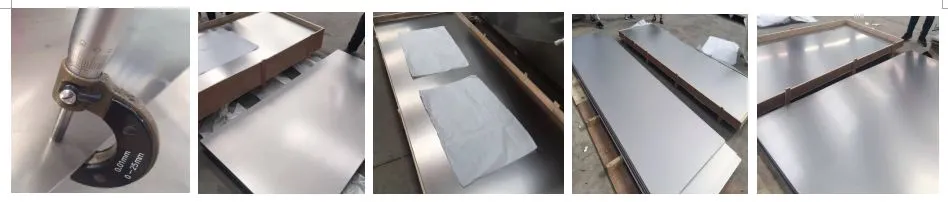

Testing and Shipment

Shipping-TSM Technology

FAQ:

Q1: What are the standard sizes available for Nickel 201 Sheet?

We offer this product in various forms, including plate, sheet, coils, foils, strip, and flats. Thickness ranges from 0.1 mm to 100 mm. Custom sizes and processing are also supported to meet your specific requirements.

Q2: What certifications do you have?

TSM Technology Co., Ltd is certified with ISO 9001, ISO 14001, and ISO 45001. We strictly adhere to industry standards and regulations to ensure the quality and reliability of our products.

Q3: Can you provide technical data sheets and test reports?

Yes, we provide detailed technical data sheets, certificates, and test reports for all our products. These documents are essential for ensuring that our materials meet your specific requirements and industry standards.

Q4: What are the payment methods?

We accept payment through T/T (Telegraphic Transfer) and L/C (Letter of Credit). Terms can be negotiated based on your requirements.
