Monel 400 vs Monel 401: Key Differences in Electrical Properties

Materials experts and buying workers need to know the differences between Monel 400 and Monel 401 when they are looking at nickel-copper alloys for electrical uses. The electrical conductivity, resistivity, and general efficiency of these metals under electrical stress are all very different. The managed addition of carbon to the Monel 401 bar makes it stronger, while the higher copper level in Monel 400 makes it better at conducting electricity. These basic differences have a direct effect on the choices of materials used in electrical applications in aircraft, ships, and factories.

Composition and Chemical Properties of Monel 400 and Monel 401 Bars

It is the chemicals that make up these nickel-copper metals that determine how well they conduct electricity. Engineers can guess how each material will behave in electrical uses by knowing these changes in composition.

Elemental Analysis and Composition Differences

Monel 400 is mostly made up of nickel (63–70%) and copper (28–34%). It has very little carbon, usually less than 0.3%. This bigger concentration of copper directly improves its ability to carry electricity. Monel 401, on the other hand, has the same amount of nickel and copper as other alloys, but it also has controlled carbon additions of 0.10 to 0.35 percent, which makes the structure stronger while slightly lowering its electrical conductivity.

Trace elements like iron (up to 2.5% of each alloy), manganese (up to 2% of each alloy), and sulfur (up to 0.024%) are very important in determining the final electrical qualities. These elements change the structure of the grains and the resistance of the alloys, which in turn changes how well the alloys carry electricity in different situations.

Impact on Electrical Performance

Nickel and copper behave electrically in very different ways because their elements are balanced. Because Monel 400 has more copper in it, it has lower electrical resistance, which makes it better for uses that need to send current efficiently. The managed addition of carbon to Monel 401 makes the crystal structure stronger, which improves its mechanical qualities but adds a small amount of resistance to the flow of electricity.

Mechanical and Thermal Properties Affecting Electrical Applications

How well these metals work in electrical settings depends a lot on how strong they are mechanically and how they react to heat. Engineers need to think about how these qualities affect the need for power performance.

Strength and Durability Considerations

Monel 401 has a lower minimum tensile strength of 760 MPa than Monel 400, which usually ranges from 515 to 585 MPa. This extra strength is helpful in electrical uses that are stressed mechanically, vibrate a lot, or go through temperature changes. Monel 401 has a minimum yield strength of 345 MPa, which means it is less likely to bend when electrical and mechanical loads are applied together.

The elongation properties are also very different. Monel 401 has better work-hardening properties while still keeping a minimum elongation of 45%. Because of these technical benefits, Monel 401 bars are very useful in electrical parts that need to stay the same size over time even when the load changes.

Thermal Conductivity and Heat Dissipation

The ability to control temperature for Monel 401 bar has a direct effect on the performance and stability of electrical components. Because it contains copper, Monel 400 has a slightly higher thermal conductivity, which makes it better at getting rid of heat in high-current uses. But because Monel 401 has better structure integrity, it can stay thermally stable at high temperatures up to 300°C without losing many of its properties.

The way these metals react to heat treatment varies, which changes their end electrical properties. Stress-relief annealing works better on Monel 401 because it improves both its mechanical strength and electrical stability. This feature is especially useful in situations where parts go through temperature cycles while they're working.

Electrical Properties: Monel 400 vs Monel 401 Bars

The main differences in how these metals conduct electricity decide which ones can be used for which tasks. Knowing about resistance, conductivity, and how well a material works in different environments can help you choose the right one.

Conductivity and Resistivity Analysis

The electrical conductivity of Monel 400 is usually between 4 and 5 percent IACS (International Annealed Copper Standard), while that of Monel 401 is only 3 to 4 percent IACS because it has more carbon in it and a stronger structure. Monel 400 has an electrical resistivity range of 48 to 58 microhm-cm, while Monel 401 has a range of 52 to 65 microhm-cm.

When current flow needs to be efficient for long amounts of time, these differences become especially important. Because Monel 400 is a better carrier of electricity, it is better for electrical contacts, wires, and parts where reducing electrical losses is very important.

Performance in Corrosive Environments

In corrosive conditions, both metals keep their good electrical properties, but their efficiency is different. Because it has better mechanical qualities and a structure that has been strengthened with carbon, Monel 401 is more resistant to corrosion. This makes it perfect for marine electrical uses that are constantly exposed to saltwater.

Real-world performance data from offshore platforms shows that electrical parts made of Monel 401 keep their resistivity values fixed even after being in harsh marine settings for a long time. Because of this steadiness, upkeep costs will go down and the system will be more reliable for longer than 20 years.

Comparative Analysis with Other Materials for Electrical and Marine Applications

Both Monel metals have special benefits that make them worth choosing over other materials when it comes to high-strength electrical uses.

Performance Against Stainless Steel and Other Alloys

Stainless steel types like 316L are very strong mechanically, but they have a much higher electrical resistivity (72–81 microhm-cm) than both Monel metals. This higher resistance makes electrical uses less efficient and makes too much heat when current flows through them, unlike with Monel 401 bar.

Copper-nickel alloys, like 90/10 CuNi, are better at conducting electricity than Monel alloys, but they are not as strong. When used in marine settings, copper-nickel alloys may rust more quickly in some situations, but monel metals always work well.

Marine and Heat Exchanger Applications

Both Monel alloys are great picks for naval electrical systems because they work well with electricity and don't rust. Monel is good for heat exchangers because it doesn't conduct electricity and doesn't rust or foul in naval environments.

Case studies from military uses show that Monel 401 electrical parts in seawater cooling systems keep their electrical integrity and are more reliable mechanically than parts made of other materials. This speed edge cuts down on system downtime and maintenance needs by a large amount.

Procurement Considerations for Monel 400 and 401 Bars

To successfully buy these specific alloys, you need to know how the market works, what the supplier can do, and what the quality assurance standards are.

Market Availability and Pricing Structures

Prices for Monel 401 bars on the market right now run from $25 to $35 per kilogram, based on the size, quantity, and state of the market. Due to its more frequent use and well-established supply chains, monel 400 usually gets slightly lower prices of $22 to $30 per kilogram.

Different suppliers have different minimum order amounts. Well-known companies like TSM Technology are able to accommodate both small quantities for prototypes and big production orders. Lead times for normal sizes are usually between 4 and 8 weeks, while lead times for special sizes can be between 8 and 12 weeks.

Supplier Evaluation and Quality Assurance

Suppliers you can trust must show that they follow worldwide rules like ASTM B164, JIS H4551, and EN 10204. Certification of materials through MTC (Mill Test Certificate) and testing by a third party makes sure that their electrical and mechanical traits stay the same.

TSM Technology has a full quality control system that includes testing for mechanical properties, material makeup, and non-destructive testing methods. This strict method makes sure that the electrical properties meet the standards and stay the same from one production batch to the next.

TSM Technology: Your Trusted Partner for Premium Monel Alloy Solutions

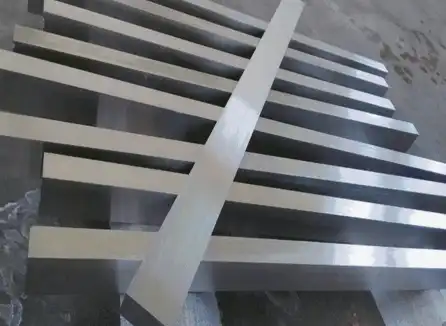

TSM Technology is one of the biggest companies in the world that makes high-performance Monel 401 bars. They offer the best nickel-copper alloy options for tough industrial uses. Our advanced manufacturing includes three modern plants with more than 100 precise tools and eight production lines. This makes sure that the quality of our products is always the same and that our supply chains are always reliable.

Manufacturing Excellence and Technical Capabilities

Our 3,200㎡ production plant in Shaanxi has modern vacuum arc furnaces and 2,500-ton forging presses, which allow us to fully integrate our operations from handling raw materials to delivering finished goods. This all-around method makes sure that every Monel 401 bar we make has the best electrical and mechanical features.

With a monthly supply capacity of 300 tons, we keep a large stockpile to meet the needs of both pressing projects and planned purchases. As part of our custom services, we can offer non-standard sizes and tight specs of ±0.05mm to meet the specific needs of electrical applications in a wide range of fields.

Quality Assurance and Certification Standards

Analyzing the material's makeup, trying its mechanical properties, doing non-destructive tests, checking its dimensions, and checking its surface quality are all part of our quality control system. Every Monel 401 bar is carefully checked to make sure it meets the standards set by ASTM, JIS, AISI, GB, DIN, and EN.

Material certifications come with full MTC paperwork and SGS test results, which make it possible to track everything that goes into important electrical applications. In addition to production, we also offer professional support services to help customers get the most out of the materials they choose and the way they work in their applications.

Conclusion

Because Monel 400 and Monel 401 bars are made of different alloys and have different structure features, their electrical properties are also different. Each metal has its own benefits for different uses. Monel 400 is better at conducting electricity, and Monel 401 is better at being strong and resistant to rust. These differences help people choose the right materials for electricity uses in space, at sea, and in factories. Engineers and procurement workers can improve system performance and make sure it will work reliably in harsh settings for a long time if they understand these qualities.

FAQs

1.What are the main electrical conductivity differences between Monel 400 and 401?

Because it has more copper, Monel 400 has a better electrical conductivity (4–5% IACS) than Monel 401 (3–4% IACS). The careful adding of carbon to Monel 401 makes the alloy stronger but slightly less conductive. Because of this difference, Monel 400 is better for uses that need high electrical efficiency, while Monel 401 is better for uses that need good mechanical and electrical performance.

2.How do these alloys perform in high-temperature electrical applications?

Both metals stay electrically stable at high temperatures, but Monel 401 works better up to 300°C because it has better mechanical qualities. The carbon-strengthened structure in Monel 401 makes it more stable in terms of size when temperatures change. This makes it perfect for electrical parts that need to work in high-temperature areas, like power plants and aircraft.

3.Which alloy offers better corrosion resistance in marine electrical systems?

Even though both metals are very good at resisting corrosion in salt water, Monel 401 works better because it has better mechanical features and a structure that is stronger because of carbon. This benefit means that marine electricity systems will last longer and need less upkeep, especially in the offshore and shipbuilding businesses.

Partner with TSM Technology for Superior Monel 401 Bar Solutions

TSM Technology knows how to make Monel 401 bars that have the best electrical and mechanical features for your important uses. Our advanced production methods, strict quality control, and high licensing standards give your projects the dependability they need. We are a reliable Monel 401 bar manufacturer, and we can meet your unique needs with custom solutions, expert help, and reliable supply lines.

Email our expert team at info@tsmnialloy.com to talk about the materials you need and get thorough quotes. You can try out free samples to make sure the electrical and mechanical qualities are correct before you commit to buying a lot of them.
