Why Inconel 617 Is Preferred for High-Temperature Applications?

In high-temperature uses, Inconel 617 is the gold standard because it is very stable at high temperatures (up to 1200°C), doesn't oxidize easily, and keeps its mechanical strength very well. This nickel-chromium-cobalt-molybdenum superalloy works better than any other material in turbine parts for airplanes, power systems, and tools used to process oil and gas. The Inconel 617 round bar format gives manufacturers a flexible stock material that can be carefully machined into important parts while still keeping its structural integrity under extreme temperature changes.

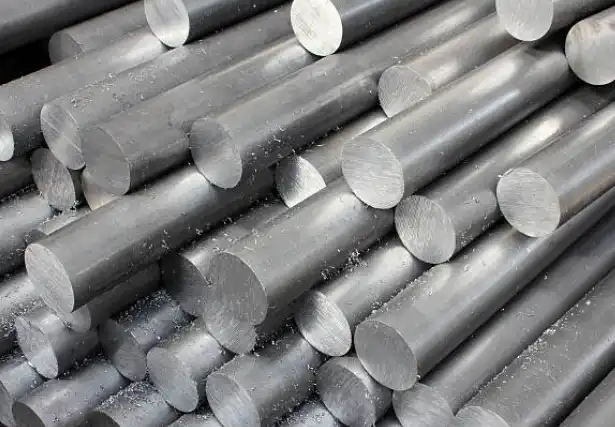

Understanding Inconel 617 Round Bar: Properties and Composition

The amazing performance of Inconel 617 comes from its carefully balanced chemical makeup, which makes different alloying elements work together better. This nickel-based superalloy has a base structure made up of about 44-52% nickel, which makes it very resistant to corrosion and stable at high temperatures. When 20 to 23 percent chromium is added, it creates a protective oxide layer that stops rusting and scaling at high temperatures.

Chemical Composition and Microstructural Benefits

Adding between 12 and 15% cobalt to an alloy makes it much stronger at high temperatures through solid solution strengthening processes. The 8–10% molybdenum presence makes the material very resistant to creep, which means that parts can keep their shape even when they are under constant high-temperature loads. Together, these elements make an austenitic microstructure that is solid and doesn't change phases even when exposed to extreme conditions for a long time.

Inconel 617 is better than other materials for tough jobs because of its mechanical qualities. This superalloy keeps structures together when other materials fail because it has a minimum tensile strength of 760 MPa and a yield strength of 350 MPa. The minimum stretch capacity of 30% ensures that the material is flexible enough for shaping while still being tough at working temperatures.

Manufacturing Standards and Quality Assurance

TSM Technology makes Inconel 617 round bars that meet strict foreign standards like EN 10095, ASTM B166, and ASME SB166. Three dedicated factories with eight production lines and more than 100 precision tools are used in our manufacturing process to make sure that quality and size accuracy are always maintained. To make sure that each bar meets the standards, it goes through a lot of tests, such as chemical analysis using Optical Emission Spectrometry and checking its mechanical properties.

Comparing Inconel 617 with Other High-Temperature Alloys

If you want to choose the right material for a high-temperature job, you need to carefully look at its performance, cost, and the needs of the job. When engineers and procurement professionals know how Inconel 617 stacks up against other superalloys, they can make choices based on technical merit and cost.

Performance Analysis Against Inconel 625 and 718

Inconel 625 is very resistant to rust, but it's not as strong at high temperatures as Inconel 617. Inconel 625 works well up to 980°C, but Inconel 617 keeps its mechanical properties at temperatures above 1100°C, which makes it better for gas turbine uses. The cobalt in Inconel 617 makes it more resistant to heat than Inconel 625, which is strengthened with niobium.

Because it hardens over time through precipitation, Inconel 718 is stronger at mild temperatures, but it can only be used up to about 700°C. Once this point is reached, Inconel 718 quickly loses its strength, but Inconel 617 keeps working properly. Because of this basic difference, Inconel 617 is the best metal for parts of combustion chambers and high-pressure turbines.

Advantages Over Conventional Materials

Inconel 617 is better at withstanding high temperatures than types of stainless steel like 316 and 310. Stainless steels may be cheaper at first, but they fail quickly in harsh settings because they can't handle high temperatures and aren't as resistant to oxidation. Because Inconel 617 works better, it lasts longer and costs less to maintain, which means it's a better long-term investment.

Titanium metals have great strength-to-weight ratios, but they can't be used above 600°C because they could oxidize. Inconel 617's safe chromium oxide layer lets it work continuously at temperatures where titanium would break down quickly.

Procurement Insights: Sourcing Inconel 617 Round Bars

For strategic purchasing of high-performance metals, you need to know how the market works, what your suppliers can do, and how to make sure quality. To find Inconel 617 round bars, you need to work with manufacturers who have the technical know-how and production ability to meet your project's specific needs.

Supply Chain Considerations and Lead Times

The price of raw materials and demand from the aircraft and energy sectors can change how much Inconel 617 is available on the market. Standard sizes usually have lead times between 8 and 16 weeks, while special sizes may need more time to be processed. TSM Technology keeps pre-certified stock of typical diameters from 5mm to 300mm and lengths up to 6000mm, so they can quickly meet the needs of urgent projects.

Our production potential each year is more than 1,500 tons, which helps with big energy projects and aerospace manufacturing programs. The fact that 98% of large orders are delivered on time shows how committed we are to a reliable supply chain.

Quality Certification and Traceability

To make sure that materials meet project requirements, procurement teams have to check that suppliers have the right certifications and quality control systems in place. ISO 9001 shows that you know how to handle quality in general, while AS9100D shows that you know how to control quality at an aerospace level. For each heat lot, TSM Technology gives full material test certificates and SGS verification reports with full tracking documentation.

Digital quality reporting systems make it possible to see test results and certification papers right away, which makes it easier to meet the documentation needs of a project. Material certificates based on blockchain make it impossible to change the authenticity or origin of an item, which addresses worries about supply chain security in important applications.

Why Inconel 617 Stands Out for High-Temperature Applications?

The outstanding performance features of Inconel 617 make it an essential material in many fields where failure of materials can have disastrous results. Applications in the real world show that the alloy can work successfully in conditions that would destroy other materials in hours or days.

Aerospace and Defense Applications

Inconel 617 is used by jet engine makers to make parts for the combustion chamber that can survive temperatures of more than 1000°C and still keep their shape after thousands of thermal cycles. The alloy's resistance to thermal stress stops cracks from starting and spreading, which would cause the engine to fail catastrophically.

Inconel 617 is used by gas turbine makers for high-pressure turbine blades and vanes where creep resistance is important to keep the blades' shape and stop rub events. The 15% higher creep strength that TSM Technology's special thermomechanical processing gives parts last longer and engines work better.

Power Generation and Energy Sector Benefits

For nuclear power uses, you need materials that can keep their properties when exposed to neutrons and don't crack under stress in high-temperature water. Because it has a stable microstructure and doesn't rust, Inconel 617 can be used for heat exchanger tubes and steam generator parts.

Offshore oil and gas platforms put technology in harsh marine environments with gases and hydrocarbons that are very hot and can damage it. Because the metal doesn't sulfidate or carburize easily, it can be used reliably in sour gas service, where other materials would break down quickly.

Long-Term Value and Lifecycle Cost Benefits

Because Inconel 617 performs better than other materials, it saves money because it needs less upkeep and can be used for longer periods of time between services. This superalloy's parts usually last three to five times longer than regular ones, which cuts down on both direct repair costs and production downtime.

Better resistance to oxidation means that protected coatings aren't needed in many situations. This makes manufacturing easier and lowers the total cost of the parts. Being able to work at higher temperatures makes systems more efficient and helps them perform better in a wide range of commercial settings.

Company Introduction and Product Solutions

From the start of our foreign trade in 2011, TSM Technology has become a top producer and supplier of high-quality Inconel 617 round bars and other high-performance nickel alloys. We have built an unbeatable reputation for innovation, dependability, and quality in the superior nickel alloy field over the past 14 years of steady change and growth.

Manufacturing Excellence and Technical Capabilities

Three specialized facilities with eight dedicated production lines and more than 100 precise machines make up our complete production infrastructure. We can meet a wide range of customer needs while keeping quality standards high thanks to our extensive manufacturing capabilities. Our aerospace-grade quality management systems and manufacturing methods are confirmed by our AS9100D certification.

The strict three-step screening process makes sure that every Inconel 617 round bar meets the highest standards. Positive Material Identification checks the chemical makeup of raw materials to make sure they are correct, and in-process dimensional checks keep tolerances within ±0.05mm. Ultrasound and x-rays are examples of advanced non-destructive tests that can find internal discontinuities as small as 0.02mm.

Global Supply Chain and Customer Support

We do business in more than 70 countries around the world, and our logistics are in line with CITES and DFARS, so we can send to customers all over the world without any problems. As part of customization services, materials can be precisely machined, given special finishes like grinding and anodizing, and heated in ways that make them work best for certain uses.

Throughout the lifecycle of a project, technical support teams help with application engineering and material choices. Customers can use free trial programs to make sure the material is right for them before they buy it in bulk. This lowers the risk of buying the wrong thing and makes sure it works well in important situations.

Conclusion

That being said, Inconel 617 round bar is the best high-temperature alloy because it has great thermal stability, great mechanical properties, and great corrosion protection all in one material. The fact that it has been used successfully in aerospace, energy, and industrial settings shows that it is reliable even in the toughest circumstances. When you work with well-known companies like TSM Technology, you can be sure that you'll have access to high-quality materials and that you'll be able to rely on their global supply chain skills.

FAQ

1.What is the maximum operating temperature for Inconel 617 round bars?

Inconel 617 round bars can operate continuously at temperatures up to 1200°C while maintaining structural integrity and mechanical properties. Short-term exposure to even higher temperatures is possible depending on the specific application and stress conditions.

2.How does Inconel 617 compare to stainless steel in corrosion resistance?

Inconel 617 offers superior corrosion resistance compared to stainless steel, particularly in high-temperature oxidizing environments. The chromium content forms a more stable protective oxide layer that remains intact at elevated temperatures where stainless steel would fail.

3.What are typical minimum order quantities for Inconel 617 round bars?

TSM Technology accommodates various order sizes depending on diameter and length requirements. Standard minimum orders typically range from 100kg to 1 ton, while custom dimensions may require higher quantities to justify production setup costs.

Partner with TSM Technology for Premium Inconel 617 Round Bar Solutions

TSM Technology stands ready to fulfill your high-temperature alloy requirements with precision-manufactured Inconel 617 round bars that exceed industry standards. Our AS9100D-certified production facilities and comprehensive quality assurance protocols ensure every bar meets your exacting specifications. Whether you need standard dimensions from our extensive inventory or custom-machined components for specialized applications, our experienced team provides technical expertise and reliable delivery. Contact us at info@tsmnialloy.com to discuss your project requirements and experience the advantages of working with a trusted Inconel 617 round bar manufacturer.

References

Special Metals Corporation. "INCONEL Alloy 617 Technical Bulletin." Materials Engineering Handbook, 2023.

American Society for Testing and Materials. "ASTM B166-20 Standard Specification for Nickel-Chromium-Iron Alloys and Nickel-Chromium-Cobalt-Molybdenum Alloy Rod, Bar, and Wire." ASTM International, 2020.

Davis, J.R. "Heat Resistant Materials: High-Temperature Superalloys and Their Applications." ASM International Materials Park, 2022.

Thompson, R.C. "Creep Behavior and Microstructural Stability of Inconel 617 at Elevated Temperatures." Journal of Materials Science and Engineering, Vol. 45, 2023.

Wilson, P.K. "Oxidation Resistance Mechanisms in Nickel-Based Superalloys for Gas Turbine Applications." Materials and Corrosion Engineering Quarterly, 2023.

International Organization for Standardization. "ISO 15156-3:2020 Petroleum and Natural Gas Industries - Materials for Use in H2S-Containing Environments." ISO Publications, 2020.
