Inconel 690 Tube Specifications and Typical Applications

When choosing materials for harsh industrial settings, Inconel 690 tubes stand out as a high-quality nickel-chromium metal made to handle tough circumstances. This seamless pipe is very good at resisting stress corrosion cracking and working well at high temperatures. It is essential in the nuclear, industrial, aircraft, and marine industries. These tubes meet strict international standards like ASTM B622, ASME SB622, and EN 10095. They have an outside width of 6.0 mm and a wall thickness of up to 15 mm. This makes them reliable in situations where material failure isn't a choice.

​

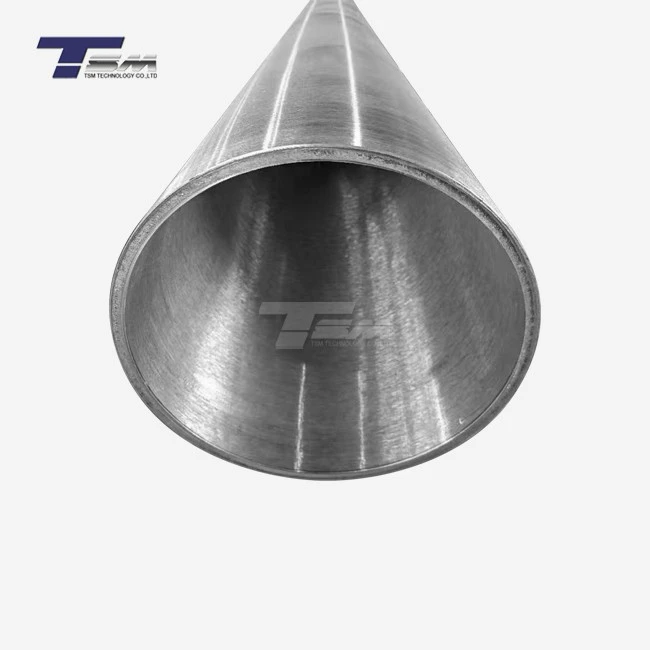

Overview of Inconel 690 Tubes

To understand the basic qualities of nickel-chromium alloy tubes, you must first look at its exact chemical make-up and microstructure. These traits have a direct effect on how well your most difficult apps run.

Chemical Composition and Alloying Elements

The metal has at least 58% nickel as its base, along with 28% to 31% chromium and 9 to 11% iron. This carefully measured mix makes a material that is perfect for harsh settings. The highest carbon content is kept below 0.05%, which makes the metal easier to join and lessens the formation of carbides during service. The high amount of chromium creates a protective oxide layer that keeps growing back, protecting the Inconel 690 tube from rusting for as long as it is used. Small amounts of other elements can be added to improve certain qualities without weakening the alloy's main benefits.

Microstructure and Material Properties

It is very stable mechanically across a wide range of temperatures thanks to its face-centered cubic grid structure. This crystalline arrangement lets the material keep its shape when it goes through changes in temperature and also lets it expand and contract without cracking. Our Inconel 690 tube has a mass of 8.19 g/cm³ and a freezing point between 1343°C and 1377°C, showing that it can handle high temperatures well. The minimum tensile strength is 655 MPa, the minimum yield strength is 275 MPa, and the minimum elongation is 30%. These are the exact specs needed for nuclear and aircraft uses.

Performance Characteristics in Extreme Environments

What makes these tubes unique is how they react to pressures that are added together, like high pressure, high temperature, and acidic media. This chromium-rich oxide film protects against oxidizing acids, especially nitric acid and mixed acid conditions that are common in chemical processes. Because it doesn't crack or stress rust in hot water, the material is perfect for steam generators, where regular stainless steels break down too soon. The metal doesn't get carburized and keeps its shape even when exposed to temperatures above 600°C for a long time.

Manufacturing Process and Heat Treatment of Inconel 690 Tubes

Quality starts in the mill and stays high at every stage of production. Our way of making things uses advanced metals and precise engineering to make sure that the goods we make are always the same and can be tracked.

Seamless Manufacturing Techniques

The first step in the production process is vacuum freezing high-quality raw materials. This makes sure that the ingot is chemically pure and uniform throughout. Hot working methods, such as extrusion and rotating piercing, shape the original tube shape while keeping the purity of the grain structure. After cold drawing, accurate dimension tolerances are reached. Our tools can make Inconel 690 tubes with an outside diameter of 6.0 mm to 114 mm and a wall thickness of 0.5 mm to 15 mm. This construction doesn't have any weld gaps, which could become weak spots in critical service situations.

Our building has eight separate production lines with more than 100 specialized tools, which allows us to offer 300 tons of goods every month. To keep quality standards high, this size lets us handle both small orders for prototypes and big orders for a lot of items. When custom end preparations, threading, or other changes need to be made, five-axis machining centers and CNC lathes can be used for secondary processing.

Heat Treatment and Property Optimization

Inconel 690 tube solution annealing at temperatures between 925°C and 980°C is an important step in making sure that the mechanical qualities and corrosion protection are at their best. This heat treatment breaks down carbides and evens out the microstructure. It is then quickly cooled to set the appropriate phase structure. The process gets rid of any stresses that are still there from cold working and finds the right grain size to balance strength and flexibility. Aging techniques can be specifically used to increase strength, but the solution-annealed state is often used because it is better at resisting corrosion.

Quality Control and Testing Protocols

Every tube goes through a full nondestructive test that includes ultrasound screening to find breaks inside, eddy current testing to look for flaws on the outside, and a radiographic exam if needed. Hydrostatic testing checks for pressure stability, and dimensional tests make sure the product meets customer requirements. We give full material tracking through Mill Test Certificates and SGS test results that show the chemical make-up, mechanical properties, and heat treatment settings. This paperwork is very important for applications that need to meet approval requirements and pass quality checks.

Comparison of Inconel 690 Tubes with Other Alloy Tubes

When choosing a material, you have to weigh the performance benefits against the cost of different metals. Being aware of these trade-offs helps you choose the best option for your unique operating conditions.

Performance Versus Stainless Steel

In many situations, austenitic stainless steels like 316L work well enough, but in high-temperature, wet conditions, they can't hold up against stress corrosion cracking as well as nickel-chromium alloys. Even though stainless steel tubes may be cheaper at first, they break down quickly in nuclear and high-temperature chemical processes, which costs a lot in unplanned repair and production losses. Inconel 690 tubes last longer than other types, which lowers lifetime costs even though the materials are more expensive. This is especially true in situations where replacing the tubing takes longer shutdowns.

Comparison with Other Nickel Alloys

Because Inconel 600 has less chromium, it is more likely to crack under stress in settings with pressured water. Inconel 625 is very strong because it is solid solution hardened, but it is more expensive and harder to machine. Inconel 718 can precipitation strengthen to make it very strong, but it needs to be carefully controlled during heat treatment and is less resistant to rust than Inconel 690 tube. These differences are important for matching the properties of a metal to its intended use and the way it was made.

Incoloy 800 is another option. It has a similar make-up, but the amount of nickel to chromium is different. Incoloy 800 works well in some situations, but it is not a quality nickel-chromium alloy because it is not as resistant to stress corrosion cracking. When engineers are worried about the stability of materials in the harshest conditions, they always choose compositions with more nickel because they are more reliable.

Evaluation Against Titanium Tubing

Titanium tubes are great at resisting corrosion and are also very light, which makes them appealing for use in naval uses. Titanium can be damaged by hydrogen, though, and it can't be used above 300°C, so it can't be used in many chemistry and power creation settings. Nickel-chromium metals have consistent mechanical qualities across a wider range of temperatures and can withstand a wider range of corrosive substances. The decision between these materials relies on the temperature needs, the specific corrosive species present, and whether the weight savings are worth titanium's higher cost and more complicated manufacturing needs.

Typical Applications of Inconel 690 Tubes in Industry

Real-world performance in a variety of industries shows the adaptability and dependability that buying teams look for in materials for important systems.

Nuclear Power Generation Systems

The main use that is pushing the creation of this alloy is in steam generating heat transfer tubes. On the main side, these tubes must handle high-pressure, hot water. On the secondary side, they must move heat to make steam. Throughout decades of use, they must also avoid stress corrosion cracking. This material is the first choice for nuclear companies all over the world because it has a high chromium content to make the oxide film stable and a good nickel content to make it flexible. The alloy's resistance to radiation and stability in shape also make it useful for parts of reactor cooling systems, such as pressurizer heater sheaths.

Chemical and Petrochemical Processing

Inconel 690 tubes are used a lot in heat exchanges, condensers, and reaction tanks in equipment used to make nitric acid. Because the material is resistant to nitric acid at different temperatures and concentrations, it keeps major breakdowns that could release dangerous materials from happening. Oil refineries use hydrocracking units that put tubes under high pressure and temperature hydrogen. These conditions make many materials more likely to break down. The face-centered cubic structure doesn't get damaged by hydrogen and keeps its mechanical qualities throughout the processing cycle.

Desulfurization systems are used in both power generation and processing to get rid of sulfur chemicals that would damage the environment and equipment. These systems make conditions that are acidic and oxidizing, which breaks down normal materials quickly. Tubes made from nickel alloys that don't rust give the machine the longevity it needs to keep running between repair periods.

Aerospace and Defense Applications

Extreme temperature cycles and oxidizing combustion fumes are what put parts of turbine engines through their paces. Tubing that is used in fuel systems, hydraulic lines, and environmental control systems needs to be strong and not corrode at all temperatures. The alloy can be machined to make complex shapes needed for aircraft parts, and it can also be welded to make strong connections without changing the properties of the parent material. The material is resistant to hot gas corrosion and thermal wear, which is good for thrust reverser parts.

Marine and Offshore Engineering

Seawater is one of the most difficult places for corrosion to happen, especially in heat exchangers where high temperatures speed up the attack. Nickel-chromium tubing is used in marine condensers, desalination equipment, and remote platform processing systems where the long life and dependability make it worth the extra cost. The metal doesn't rust or pit in chloride-containing liquids, and it doesn't crack from stress corrosion. This means that it keeps transferring heat efficiently even after long periods of use.

Procurement Guide for Inconel 690 Tubes

To be effective at buying, you need to look at providers on more than just price. This all-around method makes sure you get materials that meet your needs while also lowering the risks of the job.

Supplier Evaluation Criteria

Assessing a provider starts with looking at how well they can make things. Our current 50,000-square-meter building has combined production from melting to final inspection. This way, we can keep an eye on quality at every step of the way. Our quality control systems meet world standards for aerospace and defense, as shown by our ISO 9001 and AS9100D certifications. Over the past 14 years, serving more than 70 global markets has given us a lot of experience meeting a wide range of customer and legal needs.

The ability to provide technical help is just as important as the ability to make things. Materials engineers, procurement leaders, and quality assurance teams all benefit from working with suppliers who know what the application needs and can suggest the best specs. Our team helps you choose the right materials, checks the plans to make sure they can be made, and gives you advice on the best heat treatment choices to meet your performance goals.

Pricing Dynamics and Lead Time Considerations

Inconel 690 tube prices are affected by many things, such as the markets for raw materials, the size of the order, and any licenses that are needed. When you buy in bulk, you can save money, especially when you use the same sizes for multiple jobs. Our 300-ton monthly capacity can handle both big orders and prototypes that need to be made quickly. The length of the lead time depends on whether the specifications match standard production sizes or need special tooling. Standard versions usually ship within four to six weeks.

Customization Options and Surface Treatments

Standard options include tubes with surfaces that have been sandblasted, electropolished, or chemically polished to meet the needs of a variety of work settings and cleaning standards. We can customize the sizes of our tubes from 6.0 mm to 114 mm in diameter. In addition, we offer extra services like precision cutting to lengths of up to 15,000 mm, end preparation, bends, and assembly. This unified method makes your supply chain simpler while making sure that all of its parts work together.

Quality Assurance and Certification Requirements

For use in nuclear, aerospace, and pressure vessel work, strict recording is needed. We give Mill Test Certificates that prove the chemical make-up and mechanical properties of each output lot. If needed, SGS third-party testing is also done. Traceability starts with the heat numbers of the raw materials and goes through all the steps of processing. This makes it possible to keep full records for regulatory compliance. Our goods are made to meet the strictest foreign standards by following ASTM B622, ASME SB622, EN 10095, and RCC-M nuclear standards.

Conclusion

Choosing the right material for corrosive, high-temperature work environments is what makes the difference between long-lasting, effective use and expensive breakdowns that happen too soon. Inconel 690 tube has been used successfully in nuclear, chemical, aircraft, and marine settings where the purity of the material must not be compromised. Knowing the specs, how things are made, and how they compare in terms of performance lets you make smart purchasing choices that balance technical needs with price limits. These tubes are the best choice for engineers and procurement workers who need to choose materials for important systems because they are strong at high temperatures, don't crack under stress, and come with a lot of quality paperwork.

FAQ

1. What temperature range is suitable for nickel-chromium alloy tubing?

The material keeps its good mechanical qualities and resistance to corrosion from very low temperatures (cryogenic) up to about 650°C in constant service. In some cases, short-term trips to higher temperatures may be allowed. The melting point is higher than 1340°C, which gives a lot of room for high-temperature uses.

2. How does this alloy differ from Inconel 600 in corrosion resistance?

Higher chromium content (28–31%) compared to Inconel 600 (14–17%) makes it more resistant to stress corrosion cracks in wet, high-temperature conditions. Because of this, it is the best material for nuclear steam turbines, where Inconel 600 could crack.

3. What factors should guide supplier selection?

Check the company's ability to make things, its quality certifications, its expert help resources, and its documentation for tracking products. When it comes to quality control, suppliers who handle the whole production process, from melting to testing, are better than those who outsource important steps. Getting certifications like ISO 9001 and AS9100D shows that you are dedicated to managing quality in a planned way.

Partner with TSM Technology for Premium Inconel 690 Tube Solutions

TSM Technology can meet your most strict material needs with high-quality nickel-chromium alloy tubing that is made to your exact specs. We have been a seller of Inconel 690 tubes for 14 years and are experts in making superalloys. Procurement professionals, materials engineers, and quality teams rely on our technical knowledge and manufacturing skills for important projects. Our eight production lines and more than 100 precise tools make sure that the quality is always the same, and we're still able to meet both standard and unique requirements. With ISO 9001 and AS9100D certifications to back it up, full material tracking through MTC and SGS test records gives your projects the proof they need. Email our team at info@tsmnialloy.com to talk about your needs and get full technical specs that are made to fit your application.
