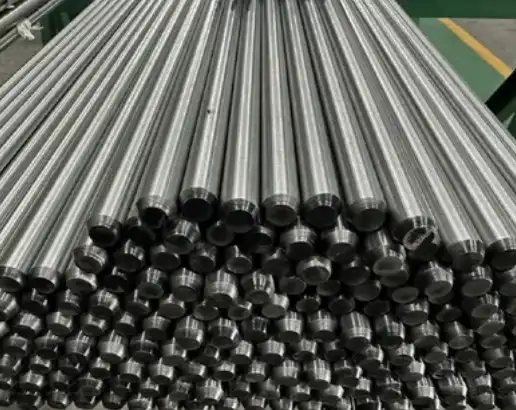

How Strong Is Inconel 617 Round Bar at Elevated Temperatures?

Inconel 617 round bar keeps about 80% of its room temperature tensile strength at 1000°C and keeps working reliably up to 1200°C, showing that it keeps its strength very well at high temperatures. This nickel-chromium-cobalt-molybdenum superalloy has a minimum tensile strength of 760 MPa at room temperature. Its special metallurgical structure gives it better resistance to creep and oxidation, which is why it is needed in combustion chambers for spacecraft, gas turbine parts, and petrochemical processing equipment that works in very hot conditions.

Understanding Inconel 617 Round Bar: Composition and Key Properties

The amazing performance of nickel-chromium-cobalt alloys comes from the fact that their chemicals are carefully matched. Inconel 617 is made up of 44-52% nickel, which is its base element and what makes it stable at high temperatures. Adding 20–23% chromium makes an oxide layer that protects against corrosion and scaling, and adding 12–15% cobalt improves the processes that make solid solutions stronger.

Chemical Composition Analysis

The 8–10% molybdenum content makes the alloy much more resistant to pitting and crevice corrosion in harsh conditions. Adding very small amounts of aluminum and titanium (less than 2% total) helps the precipitation hardening process by creating gamma-prime phases. Because of this exact mechanical balance, the material can be exposed to temperatures over 1100°C for a long time without breaking down much.

This superalloy's microstructural stability comes from its face-centered cubic crystal structure, which stays stable over a wide range of temperatures. This crystallographic structure gives the material great ductility and toughness, which are important for parts that are heated and cooled and put under mechanical stress.

Mechanical Properties at Various Temperatures

Quality Inconel 617 round bars have a minimum tensile strength of 760 MPa and a minimum yield strength of 350 MPa when they are at room temperature. These numbers show that the material has a strong mechanical base, which is used as a starting point for judging its performance at high temperatures.

When tested at 800°C, the material kept about 85% of its tensile strength. When tested at 1000°C, it kept about 70–80% of its strength at room temperature. Even at high temperatures, the elongation properties stay good, usually topping 25% at 1000°C. This means that the material is easy to work with and doesn't easily break into brittle pieces.

Elevated Temperature Performance: Strength and Corrosion Resistance Analysis

A thorough testing program in both the lab and the field has proven that this advanced superalloy has great high-temperature properties. Studies done by different groups have shown that the material stays structurally sound at temperatures as high as 1200°C for long periods of time. This means it can be used in the harshest industrial settings.

Creep Resistance Characteristics

In high-temperature situations, creep resistance is one of the most important performance factors. The metal has a very high creep-rupture strength; at 980°C and 140 MPa of stress, it can last for 1000 hours. This performs better than many competing materials, giving engineers faith in the long-term dependability of the part.

This material's creep deformation is caused by controlled dislocation movement and stiffening of the grain boundaries. When carbides and intermetallic phases are present, they stop dislocations from moving. This lowers the strain rates when the load is applied for a long time.

Oxidation and Corrosion Resistance

Exposure testing in oxidizing environments shows a very high resistance to metal loss and scale growth. At 1100°C in air, the material forms a thin, stick-together chromium oxide layer that keeps it from oxidizing again for a long time. After 1000 hours of exposure, measures of weight gain usually stay below 0.5 mg/cm², which means that the material isn't being used up very quickly.

Because the metal doesn't easily get carburized or nitrided, it is very useful in petrochemical settings where hydrocarbon breakdown products can quickly break down less-than-stellar materials. This chemical stability makes sure that the mechanical traits stay the same over long periods of time.

Comparing Inconel 617 with Other High-Temperature Alloy Round Bars

When choosing a material for use in high temperatures, it's important to carefully compare different superalloys. Several nickel-based materials can be used at high temperatures, but each has its own pros and cons that make it better or worse for different uses.

Performance Against Inconel 625 and 718

When it comes to resistance to rust in water, Inconel 625 is better than Inconel 617. However, it is not as strong when heated above 650°C. The second one is better for gas turbines and aerospace uses that need to work at high temperatures because it has better creep resistance and higher allowable design stresses.

Even though precipitation hardening makes Inconel 718 very strong, its strength drops quickly above 650°C because of the effects of overheating. The 617 version keeps its properties over a wider range of temperatures, which gives engineers working on high-temperature systems more design options.

Comparison with Hastelloy and Stainless Steel Alternatives

The high-temperature strength of Hastelloy X is about the same, but because it contains tungsten, it usually costs more. Similar performance is achieved with the 617 alloy, which has better machinability and weldability properties. This means that it costs less to make complicated parts.

Even though austenitic stainless steels are cheaper, they usually can't compete with nickel-based superalloys when it comes to performance at high temperatures. Above 800°C, stainless steel loses a lot of its strength and oxidizes faster, so superalloys are the better choice for high-stakes situations.

Procurement Insights: Sourcing High-Quality Inconel 617 Round Bar

To successfully buy high-performance nickel metals, you need to know how the market works now and what your suppliers can do. The world market for superalloys has been growing steadily. This is because the aerospace and energy industries are growing and need more reliable high-temperature materials.

Market Trends and Supply Chain Considerations

The market is currently in a strong demand state for Inconel 617 round bar because aircraft companies are working hard to make next-generation engines that can work at higher temperatures. Because of more demand, lead times for premium grades are longer, so early planning for sourcing is important for the success of the project.

After recent world problems, supply chain resilience has become more important. Diversifying suppliers and keeping track of inventory are now important parts of successful procurement strategies that make sure key projects always have access to the materials they need.

Quality Standards and Supplier Qualifications

Some of the most important suppliers keep certifications, like AS9100D for aerospace use and ISO 9001 for general industry use. These certifications make sure that quality control systems are always the same and that products can be tracked all the way through the manufacturing process.

Documentation for material traceability, such as Mill Test Certificates and chemical analysis reports, is needed to confirm the composition and mechanical qualities of a material. Trustworthy providers offer full testing services, such as tensile, hardness, and corrosion resistance tests, to meet customer qualification needs.

Industry Standards and Certification for Inconel 617 Round Bar

Following established industry standards makes sure that materials are consistent and work reliably across different sources and production batches. These guidelines spell out the minimum and maximum amounts of chemicals, mechanical properties, and testing methods that are needed to make sure that materials are suitable for their intended uses.

ASTM and ASME Standard Requirements

The chemical make-up and mechanical qualities of nickel-chromium-cobalt alloys are governed by ASTM B166 and ASME SB166 standards. These standards set minimum requirements for strength, maximum amounts of impurities, and standard testing methods that make sure the quality of materials is always the same.

It is easy for suppliers, makers, and end users to talk to each other because the UNS N06617 number is a universal way to identify this particular alloy composition. This standardized nomenclature makes things clearer and makes sure that materials are chosen correctly in all foreign markets.

Testing and Certification Protocols

Comprehensive testing methods make sure that the properties of the material are correct and that they meet the requirements of the specification. Standard tests include using optical emission spectrometry to analyze chemicals, tensile testing at room temperature and higher temperatures, and standard methods to measure hardness.

According to ASTM standards, corrosion testing gives numbers about how well a material works in certain conditions. These tests are like real-life service conditions and give you faith in the materials you choose for corrosive uses.

TSM Technology: Your Trusted Inconel 617 Round Bar Manufacturing Partner

TSM Technology is one of the biggest companies in the world that makes high-performance nickel alloys. They have been helping the aerospace, energy, and chemicals industries for over 14 years. We have three dedicated facilities that run eight production lines with more than 100 precision machines. This makes sure that the quality is always the same and that demanding projects can be delivered on time.

Advanced Manufacturing Capabilities

Our AS9100D-certified factory has 85 CNC lathes that make sure every product is as precise as those used in aircraft. Each round bar goes through a strict three-stage inspection process that includes PMI proof of the raw materials, in-process dimensional checks that keep a tolerance of ±0.05mm, and full UT/RT testing that can find flaws as small as 0.02mm.

We can get 15% higher creep rupture strength than normal grades and 20% better oxidation resistance at temperatures above 1000°C thanks to a special thermomechanical process we came up with in 2022. Independent labs have confirmed that these improvements are safe for use in hypersonic vehicles. This shows that we are committed to new ideas and high performance.

We can make things with diameters ranging from 5 to 300 mm and lengths between 300 and 6000 mm as standard. We can also make things with diameters up to 500 mm to fit the needs of a particular project. Surface processes like sandblasting and anodizing make sure that the metal works well in a wide range of situations.

Quality Assurance and Certification

We keep strict quality control systems that are in line with international standards to make sure that all of our products meet the strict needs of the aircraft and industrial sectors. Optical Emission Spectrometry is used for chemical analysis, hardness, tensile, and Charpy impact testing is done down to -60°C as part of our quality process, and ASTM G28 testing for acidic environments is used to confirm that the product won't rust.

Material certification includes both Mill Test Certificates and SGS test results, which give full traceability and proof for important uses. Our digital quality reporting system uses blockchain technology to make material certificates available through secure API links. This makes the supply chain more open and clear.

Conclusion

While temperatures as high as 1200°C are reached, Inconel 617 round bar shows the best performance of high-temperature alloys, keeping its strength and stopping rust. Its special mix of nickel, chromium, cobalt, and molybdenum gives it better resistance to creep, protection against oxidation, and mechanical stability that are needed in aerospace, energy, and petrochemical uses. The material has been tested and shown to work well in harsh conditions. It also has many industry certifications and a dependable supply chain, which makes it the first choice for engineers and procurement professionals who need long-term dependability in harsh conditions.

FAQ

1.What is the maximum operating temperature for Inconel 617 round bars?

Inconel 617 round bars can operate continuously at temperatures up to 1200°C while maintaining structural integrity and mechanical properties. The material exhibits excellent oxidation resistance and creep strength at these elevated temperatures, making it suitable for gas turbine components, aerospace applications, and high-temperature chemical processing equipment.

2.How does heat treatment affect the mechanical properties of this alloy?

Heat treatment significantly influences the mechanical properties through microstructural modifications. Solution annealing at 1150-1180°C followed by rapid cooling optimizes the alloy's ductility and corrosion resistance. Age hardening treatments can enhance strength characteristics, though careful temperature control is essential to prevent overaging and property degradation.

3.What factors should be considered when comparing Inconel 617 with other nickel-based alloys?

Key comparison factors include operating temperature range, mechanical strength requirements, corrosion resistance needs, and cost considerations. Inconel 617 offers superior high-temperature strength and creep resistance compared to 625 and better thermal stability than 718. Environmental factors such as oxidizing conditions, thermal cycling, and chemical exposure should guide material selection decisions.

4.What certifications are required for aerospace applications?

Aerospace applications typically require AS9100D manufacturing certification, AMS specification compliance, and comprehensive material traceability documentation. Products must meet ASTM B166 or ASME SB166 standards with verified chemical composition and mechanical properties. Additional testing may include elevated temperature tensile testing, creep-rupture evaluation, and fatigue resistance verification.

Contact TSM Technology for Premium Inconel 617 Round Bar Solutions

TSM Technology delivers unmatched expertise in high-performance superalloy manufacturing, offering comprehensive Inconel 617 round bar solutions backed by 14 years of metallurgical innovation. Our AS9100D-certified facilities ensure aerospace-grade quality with 98% on-time delivery rates for projects ranging from prototype quantities to 50+ ton industrial orders. Contact our technical specialists at info@tsmnialloy.com to discuss your specific requirements and access our extensive inventory of certified superalloy products.
