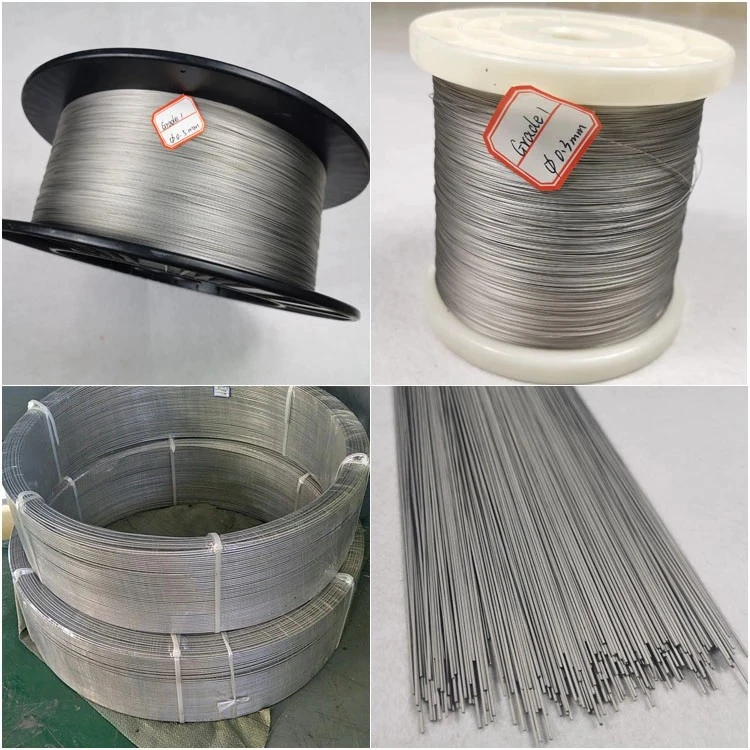

Inconel 617 Wire

Name: Inconel 617 Wire
SKU: N/A

Brand: TSM Technology
3 factories*8 production lines*100+ machines
Grade: Inconel 617 (UNS N06617)
Standard: ASTM B166, ASME SB166, EN 10095
Diameter: 0.1-12 mm
Form: Coil, Straight
Customization and processing supported
Surface treatments：Sandblasting/Anodizing
Material Certification: MTC and SGS test reports available
Provide Free sample

Send Inquiry

Download

Product Description

High-Temperature Inconel 617 Wire for Aerospace & Energy Applications

When you need a wire that combines extreme heat resistance, unmatched strength, and aerospace-grade reliability, Inconel 617 Wire stands out. Designed for temperatures up to 1,800°F (982°C), this nickel-chromium-cobalt-molybdenum alloy is trusted in jet engines, nuclear reactors, and industrial furnaces. At TSM Technology, we deliver AS9100D-certified products with full material traceability, precision tolerances (±0.01mm), and global compliance.

Why Choose Inconel 617 Wire?

1. Aerospace-Grade Performance

Withstands continuous operation at 1200°C (2192°F) due to its Cr/Al oxide layer.
AS9100D-certified for jet engine combustors, turbine blades, and afterburner components.
Full ASTM B166, ASME SB166, and EN 10095 compliance.

2. Precision Manufacturing

Available in diameters from 0.1mm (ultra-fine) to 12mm (heavy-duty).
Produced using 85 CNC lathes and 2 five-axis machining centers.
Custom spooling, straight lengths, and surface treatments (sandblasting/anodizing).

3. Rigorous Quality Assurance

100% ultrasonic (UT) and radiographic (RT) testing.
Intergranular corrosion testing per ASTM G28.
Material Test Reports (MTRs) and EN 10204 3.1 certification included Inconel 617 Wire.

Key Specifications

Property	Details
Composition	Ni (44-60%), Cr (20-24%), Co (10-15%), Mo (8-10%)
Density	8.36 g/cm³
Melting Point	1370°C (2500°F)
Tensile Strength	≥895 MPa
Surface Finish	≤Ra 0.8µm (mirror polish available)

Forms: Coil (standard 10kg) or straight wire.

Certifications: ASME III, NACE MR0175, ISO 15156.

Inconel 617 Wire

Chemical Composition of INCONEL® Alloy 617

INCONEL® alloy 617 is meticulously engineered with a specific chemical composition to optimize its performance under high-temperature and corrosive conditions

Element

Nickel (Ni)

Chromium (Cr)

Cobalt (Co)

Molybdenum (Mo)

Iron (Fe)

Aluminum (Al)

Titanium (Ti)

Manganese (Mn)

Silicon (Si)

Carbon (C)

Phosphorus (P)

Sulfur (S)

Composition (%)

44.5-56.0

20.0-24.0

10.0-15.0

8.0-10.0

3.0 max

0.4-1.0

0.6-1.4

0.5 max

0.05-0.15

0.015 max

Mechanical Properties of INCONEL® Alloy 617

INCONEL® alloy 617 exhibits excellent mechanical strength and durability across a wide range of temperatures:

Property	Value
Tensile Strength	760 MPa (110 ksi) min
Yield Strength (0.2% offset)	350 MPa (51 ksi) min
Elongation	30% min
Hardness (Brinell)	241 max (annealed condition)
Density	8.42 g/cm³

Production Standards

INCONEL® alloy 617 adheres to several international production standards:

Standard	Description
ASTM B166	Bars, rods, and wires
ASTM B168	Sheets, plates, and strips
ASTM B167	Seamless pipes and tubes
ASTM B517	Welded tube
ASTM B516	Welded pipe
ASTM B564	Forgings
ASTM B366	Fittings

Applications Across Industries

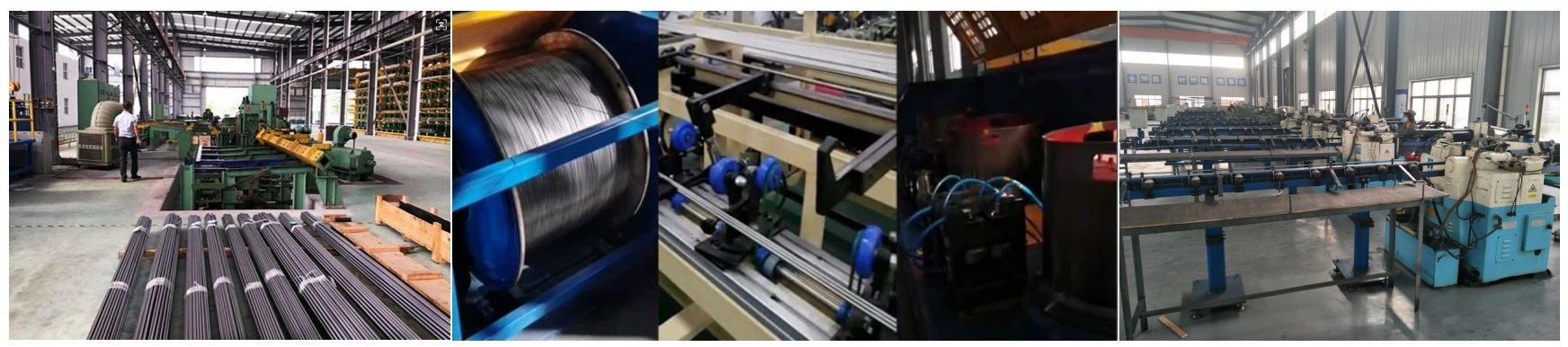

Our Manufacturing Edge

14+ Years of Expertise: Proprietary processing for enhanced creep resistance.
End-to-End Control: From vacuum arc remelting (VAR) to final machining.
Global Logistics: 70+ supply channels for fast delivery (45 days for 50-ton orders).

Manufacturing Edge
