Name: Monel 400 Bar
SKU: N/A

Since 2011, TSM Technology has been a leading global supplier of high-quality Monel 400 Bars and nickel alloy solutions. With three modern factories spanning 3,200㎡ in Shaanxi, China, our advanced production facilities feature vacuum arc furnaces and 2,500-ton forging presses, enabling complete vertical integration and 1,200-ton annual capacity. Backed by 14+ years of expertise, we manufacture premium Monel 400 Bars that deliver exceptional corrosion resistance and mechanical strength for demanding applications in aerospace, marine, chemical processing, and energy industries. Our comprehensive product range meets international standards, ensuring reliable performance in the most challenging environments.

Introduction to Monel 400 Bar

Monel 400 Bar is a nickel-copper alloy (UNS N04400) known for its exceptional corrosion resistance, high strength, and excellent mechanical properties in a wide temperature range. It is widely used in harsh environments where resistance to seawater, acids, and alkalis is required.

Supply Type

Monel 400 round bar

Flat Bar

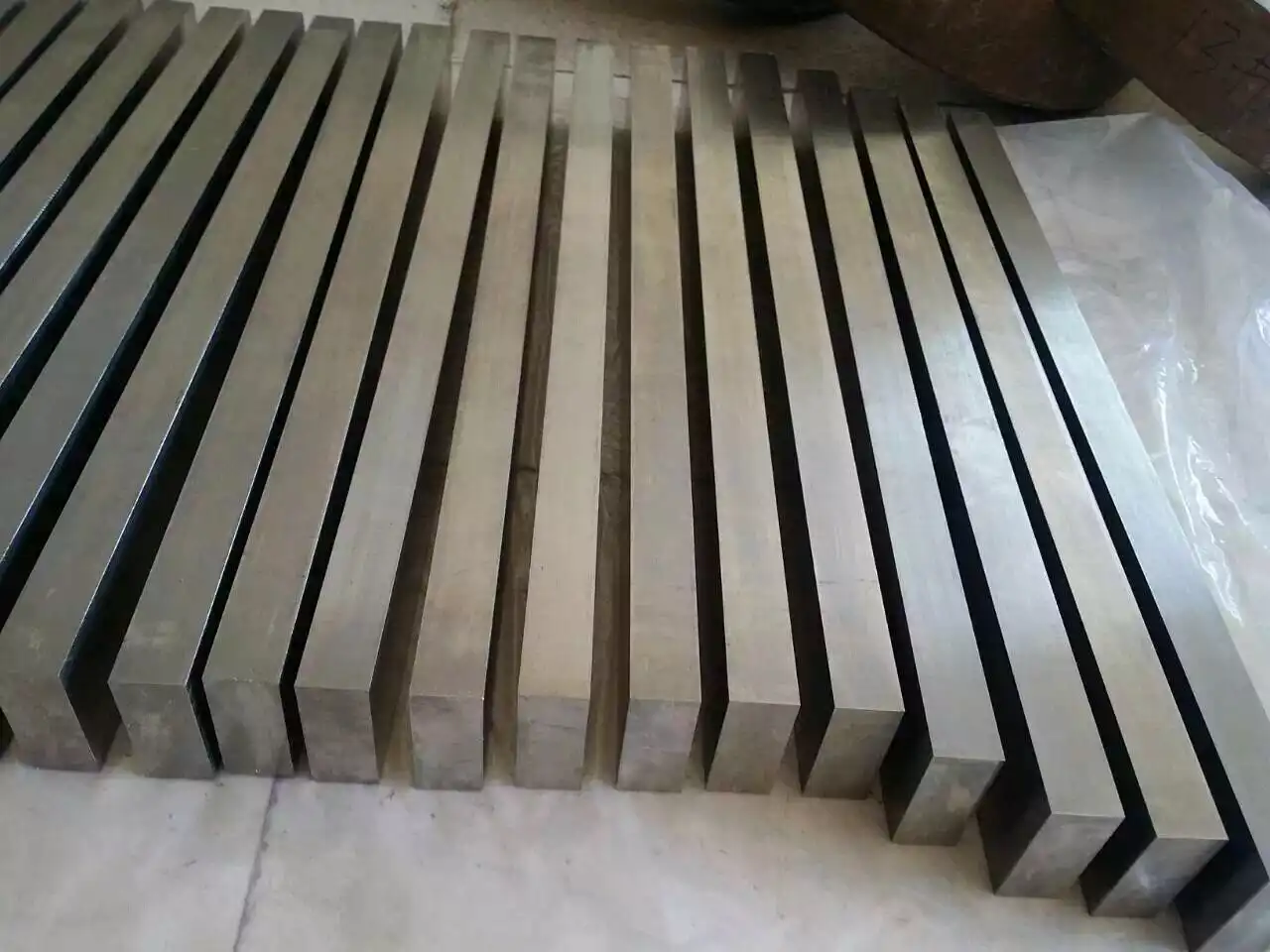

Square Bar

Threaded Bar

Product Name	Monel 400 alloy bar
Standard	ASTM B164 / ASME SB164

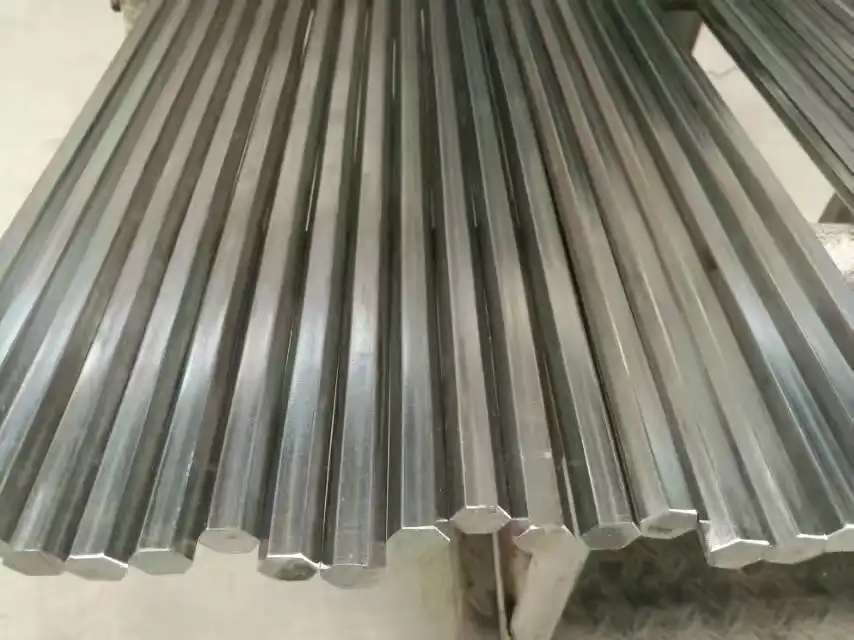

Form	Square, Round, Hex, Flat, Wire In Black & Bright Finish
Size	3mm to 400mm diameter
Length	Random, Fix & Cut Length
Delivery Condition	Annealed
Finish	Pickled, Rough Ground, Rough-Turned, Dark Oxide Surface
Technique	Hot-worked, Cold-worked, Forging Quality
Test	Chemical composition test, Tolerances Test, Tensile strength test, Yield strength test, Elongation test

Product Details

Monel 400 Physical Properties and Chemical Composition

Monel 400(UNS N04400/W.Nr.2.4360)

Chemical Composition

ALLOY

C u

F e

M n

400

min

max

2.5

0.3

0.5

0.024

Physical Characteristics

Density 8.83g/cm³

Melting point 1300-1390℃

Minimum mechanical properties

of alloys at room temperature

Typical mechanical properties

tensile strength Rm N/mm²

Yield Strength RP0.2 N/mm²

Elongation A5%

Test℃

Solution treatment

480

170

Normal temperature

Corrosion Resistance Comparison

Medium	Nickel 200	Monel 400	Inconel 718	Hastelloy C276
Seawater/Salt Spray	Excellent	Excellent	Good	Excellent
Sulfuric Acid (20%)	Good	Excellent	Moderate	Excellent
Hydrochloric Acid (10%)	Poor	Moderate	Poor	Excellent
Chloride SCC	Excellent	Excellent	Excellent	Outstanding
High-Temp Oxidation (800°C)	Good	Moderate	Excellent	Good

Material Characteristics

Corrosion Resistance

Exceptional resistance to seawater, acids, and alkalis.

High Strength & Toughness

Ideal for high-stress applications.

Thermal Stability

Performs well in extreme temperatures.

Good Weldability

Easily fabricated and welded for various applications.

Applications of Monel 400 Bar

Marine & Offshore: Shipbuilding, piping, heat exchangers

Chemical Processing: Pumps, valves, and piping systems

Aerospace: Fuel and hydraulic lines

Energy & Power: Heat exchangers and condensers in power plants

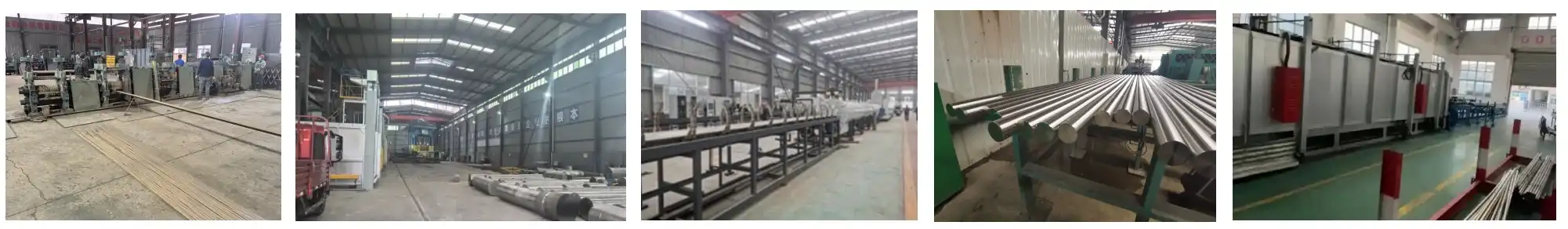

Factory

Production Technology

Process Type	Specific Process Description
Hot Working	Forging temperature: 870–1175 °C Avoid working in low temperatures and high-sulfur environments to prevent hot brittleness
Cold Working	Applicable processes: cold rolling, cold drawing, cold forging Intermediate annealing (870–980 °C) is required to eliminate work hardening
Machining	Use carbide cutting tools, low speed and high feed rate Cutting fluid lubrication is recommended to avoid tool sticking
Welding	Recommended methods: TIG (GTAW), MIG (GMAW), Shielded Metal Arc Welding (SMAW) Filler metal: ERNiCu-7 (AWS A5.14) Preheat to 150–200 °C for large cross-section welding
Heat Treatment	Annealing: 870–980 °C, rapid cooling (water quench or air cool) Stress relieving: 510–650 °C, slow cooling
Other Processes	Grinding: suitable for precision machining Polishing: electro-polishing to improve corrosion resistance

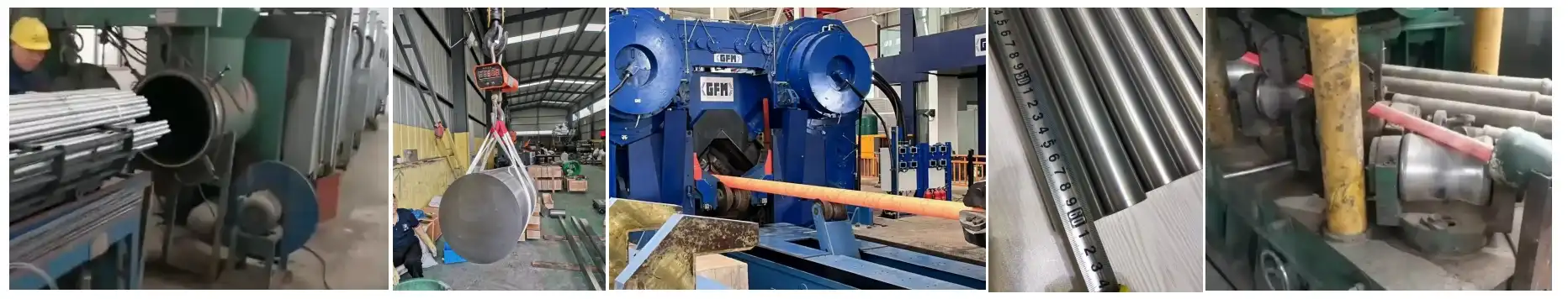

Production process

Quality Inspection

Inspection Type	Method / Standard	Content / Purpose
Chemical Composition Testing	ASTM E354 (Wet Chemical Analysis)	Determination of Ni, Cu, Fe, Mn, C and other element contents
Chemical Composition Testing	OES (Optical Emission Spectrometer)	Rapid multi-element quantitative analysis
Mechanical Properties Testing	ASTM B164	Typical Values
Tensile Strength	≥ 480 MPa	Rod (annealed condition)
Yield Strength	≥ 170 MPa	Rod (annealed condition)
Elongation	≥ 35%	Gauge length: 50 mm
Hardness	HRB 65–90	Rockwell hardness
Impact Test	Charpy V-notch	Good low-temperature toughness (maintains performance at –196 °C)
Other Tests
Metallographic Examination	ASTM E3 (Microscopic Observation)	Evaluation of grain size and inclusions
Non-destructive Testing	UT (Ultrasonic), PT (Liquid Penetrant)	Detection of internal defects and surface cracks
Dimensional Tolerance	ASTM B164	Diameter, roundness, straightness

Our Service

We are looking for partners around the world to expand our business.

Reliable Global Supply

Has been exported to 70+ countries around the world. No matter where you are, we can provide reliable logistics solutions.

Customized production service

According to the specific needs of customers, we provide customized Monel 400 Bar production services, including customization of size, length, diameter, surface treatment, etc.

Processing value-added service

Provide CNC processing, cutting, welding, surface treatment (such as polishing, electroplating) and other value-added services to meet the diverse needs of customers.

Small batch trial production service

Provide free samples or small batch trial production services to help customers verify product performance and reduce trial and error costs.

Quality inspection

Use advanced testing equipment such as spectral analysis, metallographic testing, non-destructive testing, etc., to ensure that the products meet international standards (such as AISI, ASTM, DIN, etc.).

Technical support and consultation

Provide professional technical support to help customers solve technical problems encountered during processing and use.

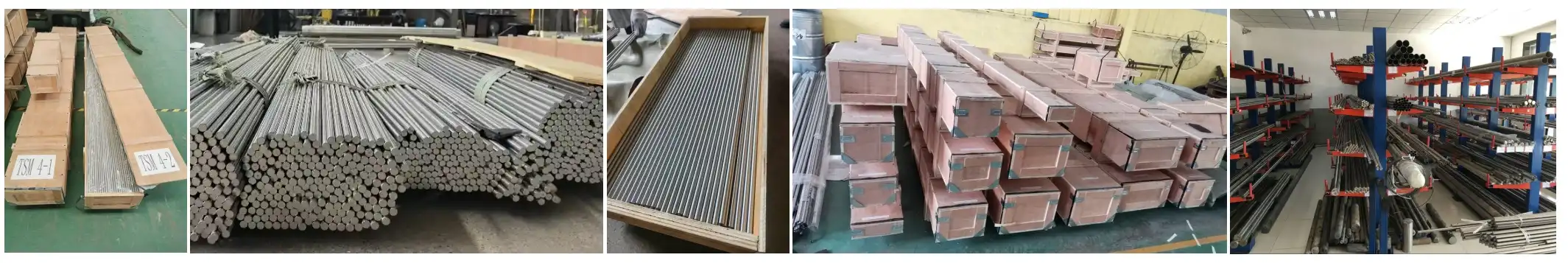

Packaging and shipment
