Nickel 200 Tubing

Name: Nickel 200 Tubing
SKU: N/A

3 factories*8 production lines*100+ machines
Grade: Nickel 200 (UNS N02200)
Standard: ASTM B161, ASME SB161, DIN 17750
OD: 6.0-114 mm
WT: 0.5-15 mm
Length: Max 15000 mm
Customization and processing supported
Surface treatments：Sandblasting/Anodizing
Material Certification: MTC and SGS test reports available
Provide Free sample

Send Inquiry

Download

Product Description

Nickel 200 Tubing: Precision-Crafted for Extreme Environments

TSM Technology produces precision Nickel 200 Tubing that delivers exceptional performance in corrosive and high-temperature environments. Engineered to ASTM B161/ASME SB163 standards, our tubing operates reliably from -200°C to +600°C, offering superior thermal conductivity (61.8 W/m·K) and non-magnetic properties. With complete vertical integration from melting to finishing, we offer custom, seamless, or welded solutions for aerospace, chemical processing, and marine applications. Our ISO 9001 and AS9100D certified manufacturing ensures the highest quality standards, supporting projects from heat exchangers to subsea pipelines with unmatched reliability.

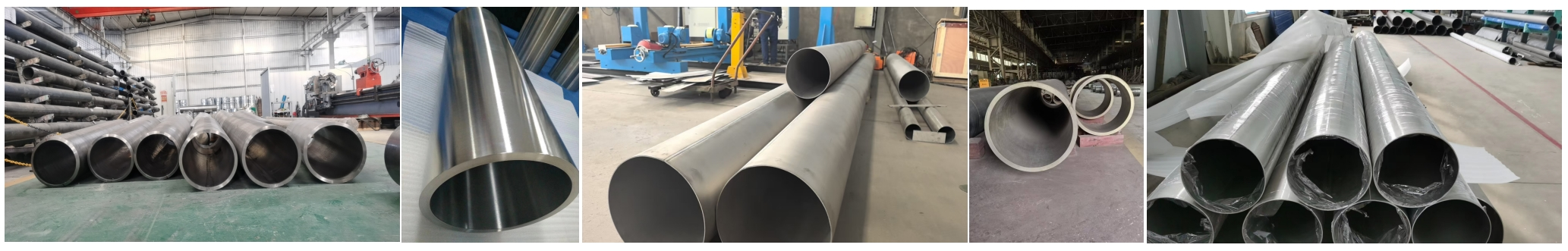

Nickel 200 Tubing

Key Specifications & Design Features

Material Composition	99.6% pure nickel (UNS N02200), FCC crystal structure
Sizes	1/8” to 12” OD (±0.01mm tolerance), 0.5–15mm wall thickness
Certifications	AS9100D (aerospace), ISO 9001, ASTM B117/B829 compliance
Testing	100% hydrostatic/pneumatic tests, UT/RT flaw detection (0.02mm sensitivity)
Customization	Sandblasted/anodized finishes, lengths up to 15 meters

Why Our Nickel 200 Tubing Excels in Critical Applications

1. Corrosion Resistance You Can Trust

Designed for harsh environments such as sour gas pipelines and marine systems, our product undergoes rigorous salt spray testing (over 1,000 hours per ASTM B117) and intergranular corrosion checks (ASTM G28). This ensures reliable performance in chloride-rich offshore settings or acidic refinery conditions.

2. Aerospace-Grade Precision

With AS9100D-certified processes and 85 CNC lathes, we achieve ±0.01mm dimensional accuracy—ideal for aircraft fuel lines or medical gas systems requiring flawless tolerances.

3. Rapid Scalability for Global Projects

Our 50,000㎡ smart factory tripled production capacity in 2023, enabling 30-day lead times even for 50+ ton orders. Proprietary defect detection systems guarantee <0.02mm flaw sensitivity, minimizing rework costs.

Industry-Proven Performance

Industry	Performance Characteristics	Testing Standards
Oil & Gas	Resists H₂S/CO₂-induced stress corrosion cracking Fatigue-tested for subsea pipeline vibrations	ASTM E466
Chemical Processing	Handles reducing acids (HF, NaOH) at 95% purity levels Full MTR traceability for FDA-compliant pharmaceutical systems	FDA cGMP
Cryogenic Systems	Maintains impact toughness down to -196°C Custom cryogenic bends for LNG storage tanks	ASTM A370

Quality Assurance: Built into Every Tube

1. Material Sourcing: XRF-verified nickel billets from ISO 17025-certified suppliers.

2. In-Process Checks: Real-time dimensional monitoring via laser micrometers.

3. Final Validation: 100% ultrasonic testing, hydrostatic pressure reports.

4. Documentation: Mill Test Reports (MTRs), ITPs, and ASME Section IX weld certs.

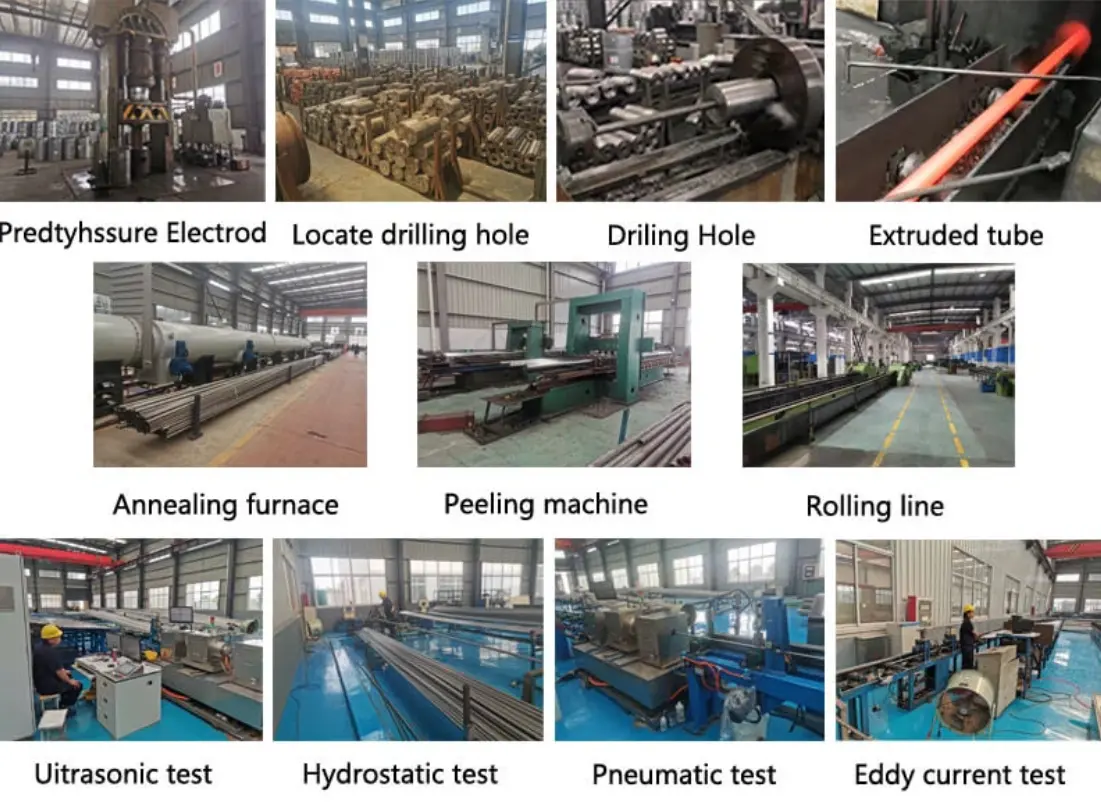

Processing and Quality Assurance

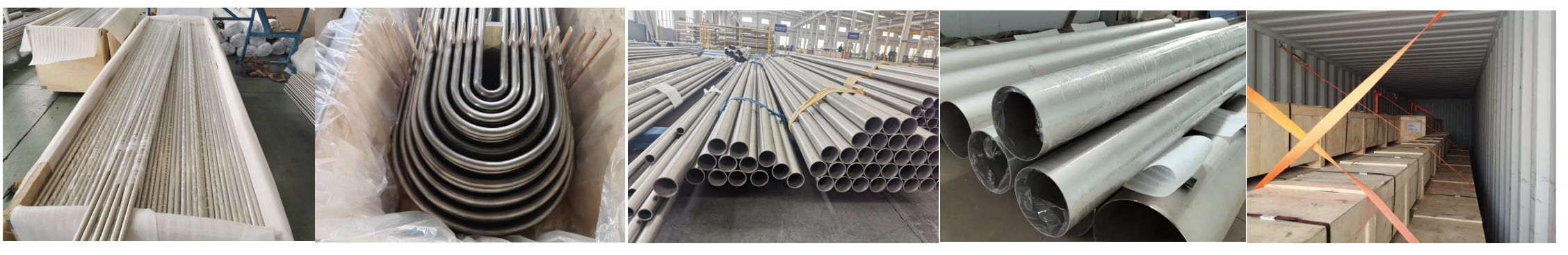

Global Delivery

Based in Xi’an’s industrial hub, we ship Nickel 200 Tubing to 70+ countries with anti-corrosive VCI packaging. Our JIT logistics network supports:

Global Delivery
