Monel 404 Flange

Name: Monel 404 Flange
SKU: N/A

3 factories*8 production lines*100+ machines
Supply Ability: 300 Tons/month
Grade: Monel 404 (UNS N04404)
Type: WN, SO, SW, LJ, BL
Size: 1/2"-24"
Pressure: 150#-2500#
Standard: ASTM, JIS, AISI, GB, DIN, EN
Material Certification: MTC and SGS test reports available
Customized size and processing are supported
Provide Free sample

Send Inquiry

Download

Product Description

Monel 404 Flange: Superior Corrosion Resistance for Demanding Applications

At TSM Technology Co., Ltd., we're proud to be a leading manufacturer and supplier of high-quality Monel 404 Flange. Our predominant nickel combination items are planned to meet the most requesting necessities in businesses such as aviation, therapeutic gadgets, and chemical preparing. With our state-of-the-art fabricating offices and thorough quality control forms, we guarantee that each item we create meets the most noteworthy guidelines of execution and unwavering quality.

What are Monel 404 Flanges?

The products are essential components made from a nickel-copper alloy known for its exceptional corrosion resistance and strength. These flanges are crucial in connecting pipes, valves, and other equipment in various industrial applications.

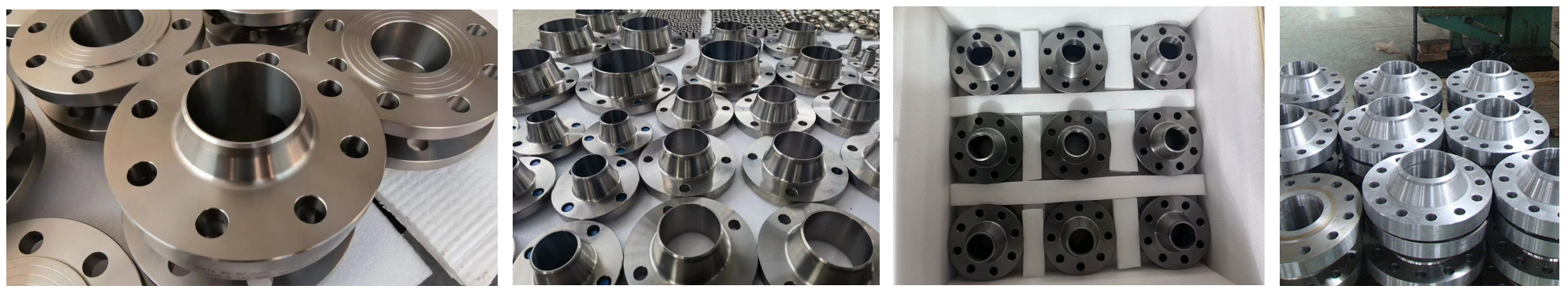

Monel 404 Flanges

Specification

Property	Value
Material	Monel 404 (UNS N04404)
Type	WN, SO, SW, LJ, BL
Size Range	1/2" - 24"
Pressure Class	150# - 2500#
Standards	ASTM, JIS, AISI, GB, DIN, EN

MONEL® Alloy 404 Product Introduction

MONEL® alloy 404 is a versatile nickel-copper alloy ideal for applications requiring corrosion resistance and high strength in harsh environments. Its combination of mechanical properties and resistance to marine and chemical environments makes it suitable for a wide range of industries. Engineers and designers seeking a durable material with excellent performance characteristics can rely on MONEL® alloy 404 for dependable solutions.

Physical Properties

Property	Value
Tensile Strength (Annealed)	450 MPa (65 ksi) min
Yield Strength (Annealed)	170 MPa (25 ksi) min
Elongation (Annealed)	40% min
Hardness (Annealed)	70 HRB max

Chemical Composition

Element	Nickel (Ni)	Copper (Cu)	Iron (Fe)	Manganese (Mn)	Silicon (Si)	Carbon (C)	Sulfur (S)
Composition (%)	52.5 min	27.0-33.0	1.0 max	1.5 max	0.5 max	0.3 max	0.02 max

Performance at Different Temperatures

Temperature Range	Performance
Room Temperature	Excellent corrosion resistance, good mechanical properties
Elevated Temperatures (up to 300°C / 570°F)	Maintains strength and toughness
Cryogenic Temperatures	Retains ductility and toughness

Production Standards and Corresponding Grades

ASTM B165
ASME SB165
DIN 17750
EN 10204 3.1

Country	Standard	Corresponding Grade
United States	ASTM B127, ASTM B164	UNS N04404
Germany	DIN 17750, DIN 17751	2.4867
France	AFNOR NFM 87-310	–
United Kingdom	BS 3072, BS 3073	NA12
Japan	JIS NW 4404	–
China	GB/T 12771, GB/T 12770	–

Features of Monel 404 Flanges

Exceptional corrosion resistance in seawater and other harsh environments
High strength and toughness across a wide temperature range
Excellent resistance to stress corrosion cracking
Superior performance in reducing and neutral solutions

Applications

Marine engineering and offshore platforms

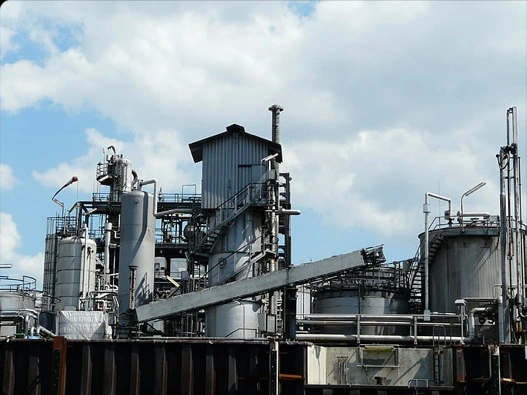

Chemical processing equipment

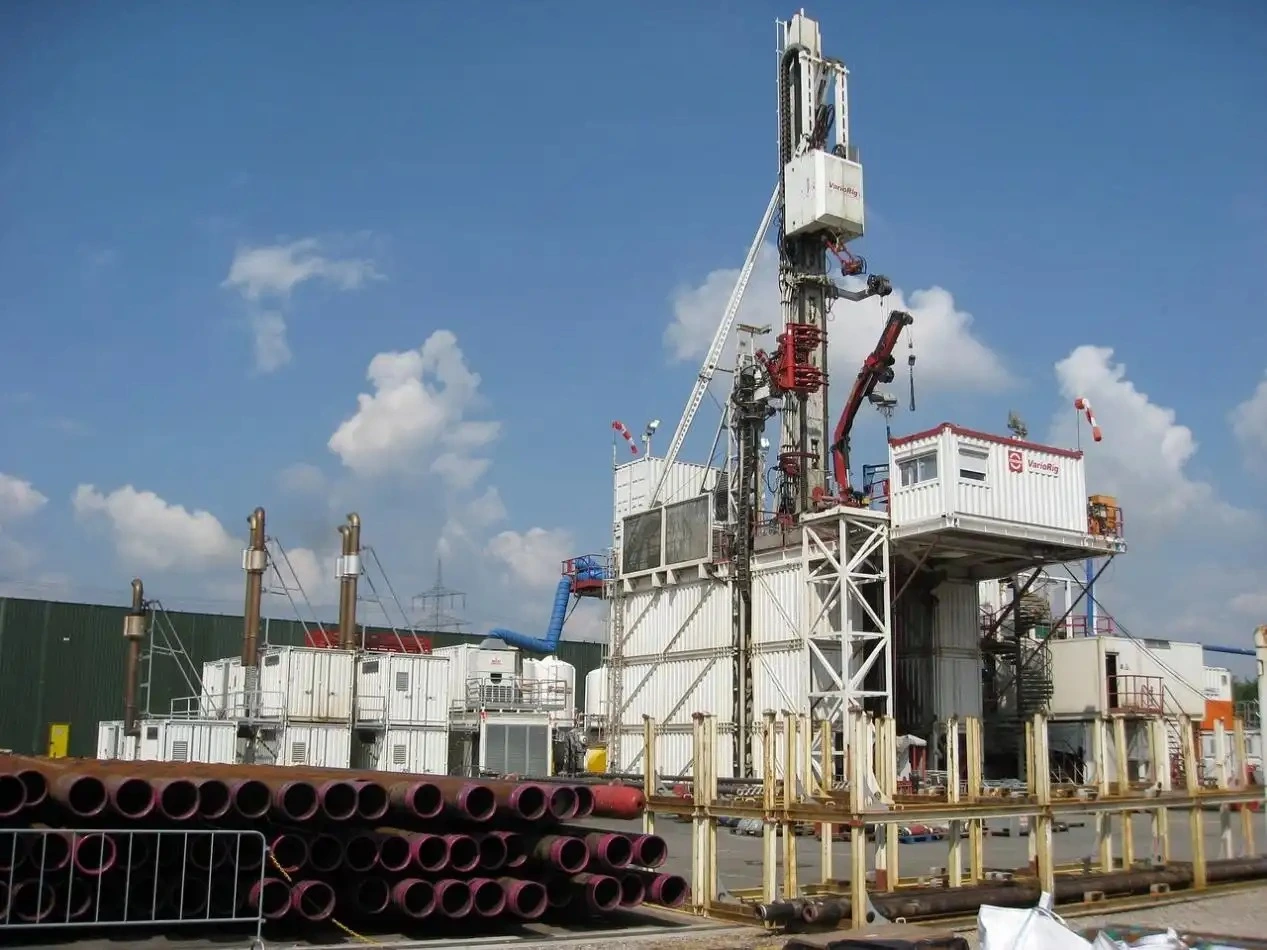

Oil and gas industry components

Power industry

Aerospace

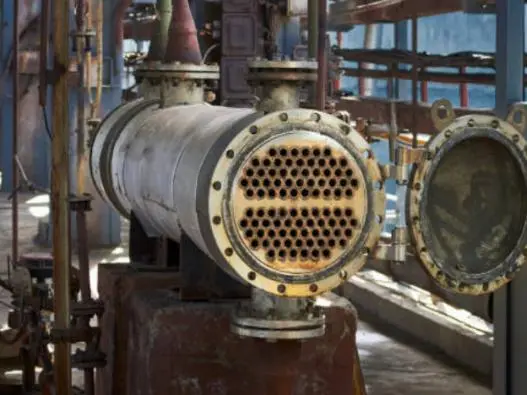

Heat exchangers and condensers

Production and Processing Technology

At TSM Technology, we employ advanced manufacturing techniques to ensure the highest quality Monel 404 Tube:

Process	Details
Welding	Welds with matching composition filler metals. Suitable methods include gas tungsten arc welding (GTAW) and gas metal arc welding (GMAW).
Machining	Requires sharp tools and proper cooling. Carbide tools are recommended for turning and milling operations.
Polishing	Achieves a good surface finish with mechanical methods like buffing and polishing wheels. Chemical polishing is also effective.
Heat Treatment	Annealing at 870°C (1600°F) followed by water quenching improves ductility and removes residual stresses.
Cold Working	It can be cold worked to various degrees for shaping. Cold working increases strength and hardness.

Quality Inspection

Our rigorous quality control process includes:

Material composition analysis
Dimensional checks
Non-destructive testing (NDT)
Hydrostatic pressure testing
Third-party inspection and certification

Why Choose TSM Technology?

Cutting-edge material technology and purity control (high purity)
Precision manufacturing and process advantages (ultra-tolerance accuracy, special surface treatments)
Comprehensive quality assurance system (ISO 9001/13485, AS9100D, NADCAP certifications)
Traceability management
Sustainable production and resource efficiency
Industry-specific customized solutions
Rapid response to special requirements
Global supply chain assurance
Strategic raw material reserves
Smart warehousing and logistics

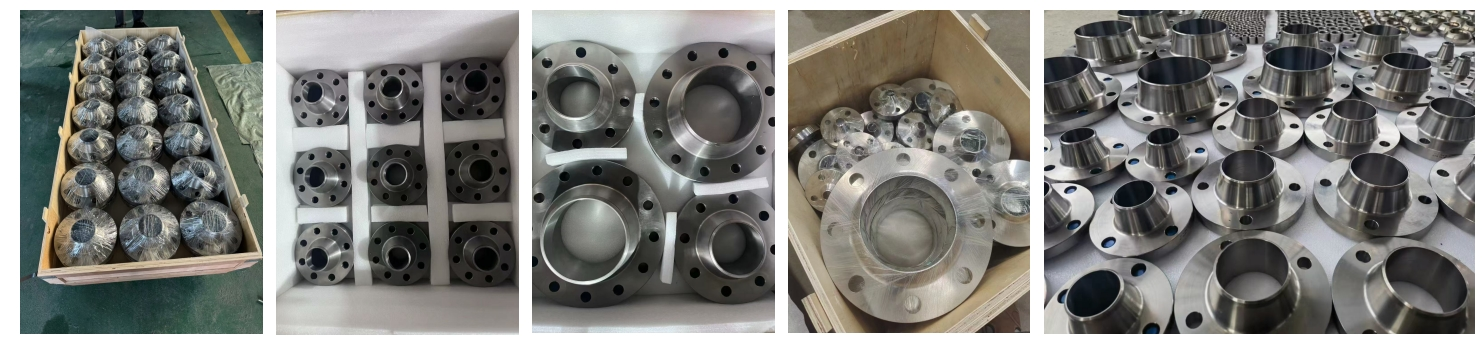

Package and Shipping

We ensure secure packaging and reliable shipping methods to deliver your product safely and on time.

Package and Shipping

FAQ

Q: What is the minimum order quantity for products?
A: Our MOQ is typically 10 pieces, but we can accommodate smaller orders for special requirements.
Q: Can you provide custom sizes for products?
A: Yes, we offer customized sizing to meet your specific project needs.
Q: What is the lead time for products?
A: Standard lead time is 2-4 weeks, depending on the quantity and specifications.
Q: Do you provide material certifications with your products?
A: Yes, we provide MTC and SGS test reports with all our products.
Q: How do the products compare to other corrosion-resistant alloys?
A: Monel 404 offers superior corrosion resistance in seawater and many chemicals, outperforming many stainless steel grades in these environments.
