Monel 401 Sheet

Name: Monel 401 Sheet
SKU: N/A

3 factories*8 production lines*100+ machines
Supply Ability: 300 Tons/month
Grade: Monel 401 (UNS N04401)
Standard: ASTM, JIS, AISI, GB, DIN, EN
Finish: Hot-rolled, Cold-rolled, Annealed
Thickness: 0.5-50mm
Width: 1000-2000mm
Material Certification: MTC and SGS test reports available
Custom Services: Non-standard sizes, special tolerances (±0.05mm)
Provide Free sample

Send Inquiry

Download

Product Description

TSM Technology is a globally recognized manufacturer and supplier of premium Monel 401 Sheets, delivering exceptional nickel-copper alloy solutions to clients across more than 50 countries. With 3 advanced factories featuring 8 production lines and 100+ machines, we ensure complete in-house production control from melting to precision finishing. Our Monel 401 sheets provide outstanding resistance to seawater, acids, and alkaline environments, making them ideal for marine engineering and chemical processing applications. Manufactured to international standards including ASTM/ASME/EN and certified under ISO quality management systems, we guarantee material excellence and reliable performance in the most demanding corrosive conditions.

The product is a nickel-copper alloy known for its outstanding corrosion resistance and mechanical properties. It combines the quality of nickel with the toughness of copper, coming about in a flexible fabric suitable for different mechanical applications.

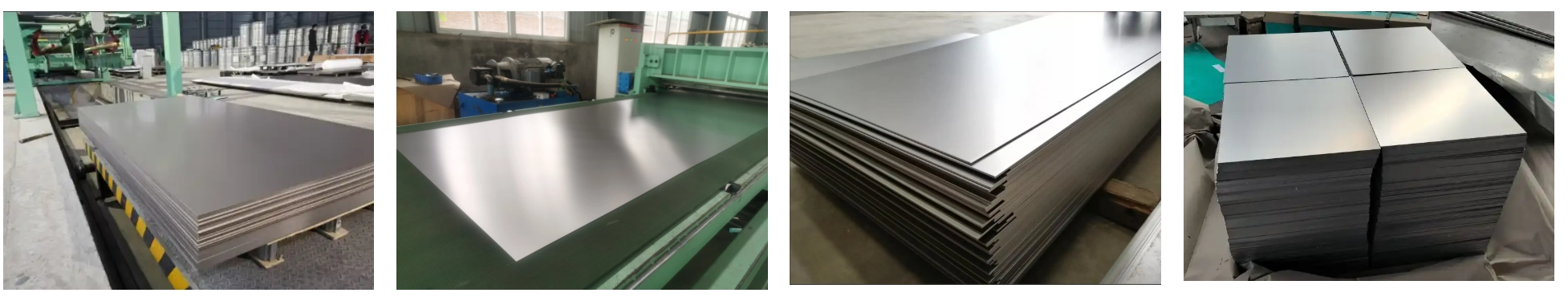

Monel 401 Sheets

Property	Value
Thickness	0.5-50mm
Width	1000-2000mm
Finish	Hot-rolled, Cold-rolled, Annealed
Custom Services	Non-standard sizes, special tolerances (±0.05mm)

MONEL® Alloy 401 Mechanical Properties

Property	Value
Density	8.8 g/cm³
Melting Point	1300-1350°C
Electrical Resistivity	0.547 μΩ·m at 20°C
Thermal Conductivity	21.8 W/(m·K) at 20°C
Tensile Strength (Annealed)	760 MPa (110 ksi) min
Yield Strength (Annealed)	345 MPa (50 ksi) min
Elongation (Annealed)	45% min
Hardness (Annealed)	75 HRB max

Chemical Composition

Monel 401 primarily consists of nickel and copper with small amounts of other elements. Below is the typical chemical composition:

Element	Nickel (Ni)	Copper (Cu)	Iron (Fe)	Manganese (Mn)	Carbon (C)	Silicon (Si)	Sulfur (S)
Composition (%)	43.0 – 47.0	52.0 – 56.0	1.5 max	1.0 max	0.15 max	0.5 max	0.024 max

Production Standards and Corresponding Grades

Country	Standard	Corresponding Grade
United States	ASTM B127, ASTM B164	UNS N04401
Germany	DIN 17750, DIN 17751	2.4361
France	AFNOR NFM 87-310	–
United Kingdom	BS 3072, BS 3073	NA11
Japan	JIS NW 4401	–
China	GB/T 12771, GB/T 12770	–

Excellent corrosion resistance in seawater and reducing acids
High strength and toughness
Good weldability and formability
Resistance to stress-corrosion cracking
Maintains properties at cryogenic temperatures

Monel 401 Tube finds applications in various industries requiring corrosion resistance and high strength:

Marine

Shipbuilding, seawater piping

Oil and gas

Offshore platforms, subsea equipment

Aerospace

Aircraft components, fuel tanks

At TSM Technology, we employ advanced manufacturing techniques to ensure the highest quality product:

Process	Details
Welding	Welds with matching composition filler metals
Machining	Requires sharp tools and proper cooling
Polishing	Achieves a good surface finish with mechanical methods
Heat Treatment	Annealing at 870°C (1600°F) followed by water quenching
Cold Working	Can be cold worked to various degrees for shaping

Production and Processing Technology

At TSM Technology, we implement rigorous quality control measures throughout our production process, including composition analysis using spectrometry, mechanical property testing (tensile strength, yield strength, elongation), non-destructive testing (ultrasonic and eddy current), surface quality inspection, and dimensional accuracy verification. Following comprehensive testing, we provide custom protective packaging tailored to each product's requirements and offer flexible global shipping options, including express delivery for urgent orders, ensuring secure transit and timely delivery to customers worldwide.

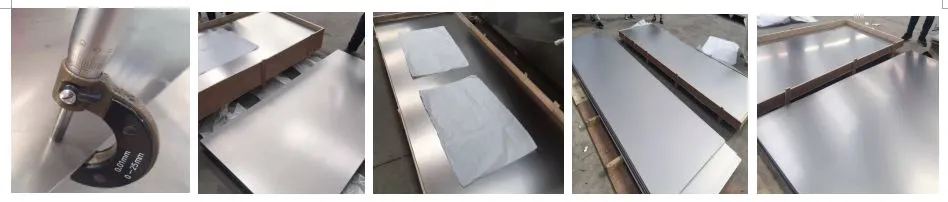

Quality Inspection and Package

Advanced material technology and purity control (high-purity alloys)
Precision manufacturing with ultra-tolerance accuracy
Comprehensive quality assurance system (ISO 9001/13485, AS9100D, NADCAP certified)
Full traceability management
Sustainable production and resource efficiency
Industry-specific customized solutions
Rapid response to special requirements
Global supply chain guarantee
Strategic raw material reserves

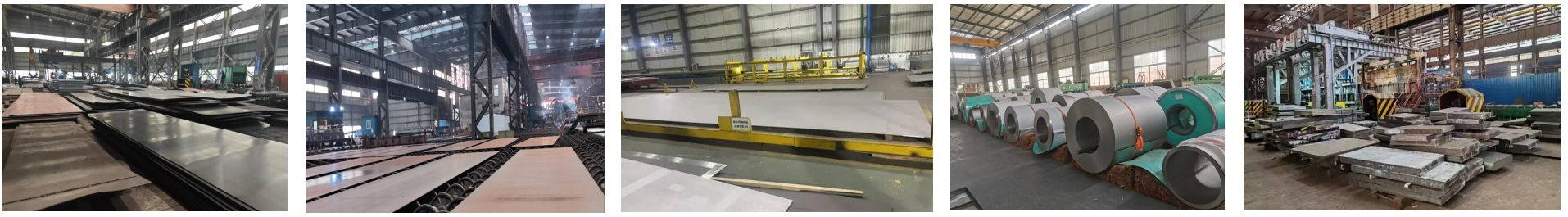

Factory

Q: What is the minimum order quantity for the product?
A: Our MOQ is typically 100kg, but we can accommodate smaller orders for sample testing.

Q: Can you provide material certificates?
A: Yes, we provide MTC and SGS test reports with every order.

Q: What is the lead time for the product orders?
A: Standard lead time is 2-4 weeks, depending on specifications and quantity.

Q: Do you offer custom sizes and finishes?
A: Absolutely! We specialize in customizing products to your exact requirements.

Q: How does Monel 401 compare to other corrosion-resistant alloys?
A: Monel 401 offers superior resistance to seawater and reducing acids compared to many stainless steels, making it ideal for marine and chemical applications.

Ready to elevate your projects with premium Monel 401 Sheet? Contact TSM Technology today for expert advice and competitive quotes:Email: info@tsmnialloy.com

Trust TSM Technology for all your high-performance alloy needs. Let's build a stronger future together with the product!
