Inconel 718 Sheet

Name: Inconel 718 Sheet
SKU: N/A

Brand: TSM Technology
3 factories*8 production lines*100+ machines
Supply Ability: 300 Tons/month
Standard:ASTM，JIS，AISI，GB，DIN，EN
Form:Plate,Sheet,Coils, Foils, Strip, Flats
Thickness:0.1 milimeter to 100 milimeter Thk
Technique：Cold rolling, hot rolling, solution, annealing
Customized size and processing are supported
Delivery time: Usually about 10-25 days
Provide Free sample

Send Inquiry

Download

Product Description

Global Leader in Inconel 718 Sheet Manufacturing

As a premier supplier of specialty nickel alloys, TSM Technology delivers high-performance Inconel 718 Sheets that meet the most demanding industrial requirements. With 3 factories, 8 production lines, and 100+ advanced machines across our 3,200㎡ production base, we maintain complete control from melting to finishing. Our vertically integrated manufacturing process ensures exceptional corrosion resistance, mechanical strength, and durability in aerospace, petrochemical, and energy applications. Certified to ISO 9001, AS9100D, and AS9120 standards, we supply ASTM/ASME/EN-compliant nickel alloy products to 50+ countries worldwide. From aircraft components to medical implants, TSM's Inconel 718 Sheets represent the pinnacle of material innovation and reliability.

Inconel 718 Sheet Introduction

Inconel 718 Sheet is a high-strength, corrosion-resistant nickel-chromium alloy known for its excellent mechanical properties at extreme temperatures. It offers outstanding resistance to oxidation, creep, and stress corrosion cracking, making it ideal for applications in aerospace, energy, and chemical industries.

Supply type

TSM Inconel 718 plate supply types include: hot-rolled plates, cold-rolled plates, thin plates, thick plates, electroplated materials and strips. We provide different sizes, wall thicknesses and surface treatments, such as pickling, polishing, etc. The size, length and heat treatment state can be customized according to your needs.

Standards: ASTM B443
Thickness: thin plate (0.15-6.0mm), thick plate (6.0-50.0mm)
Surface state: annealed, pickled (NO.1) or polished (2B/BA)
Dimension tolerance: thickness tolerance ±0.05mm, flatness ≤3mm/m

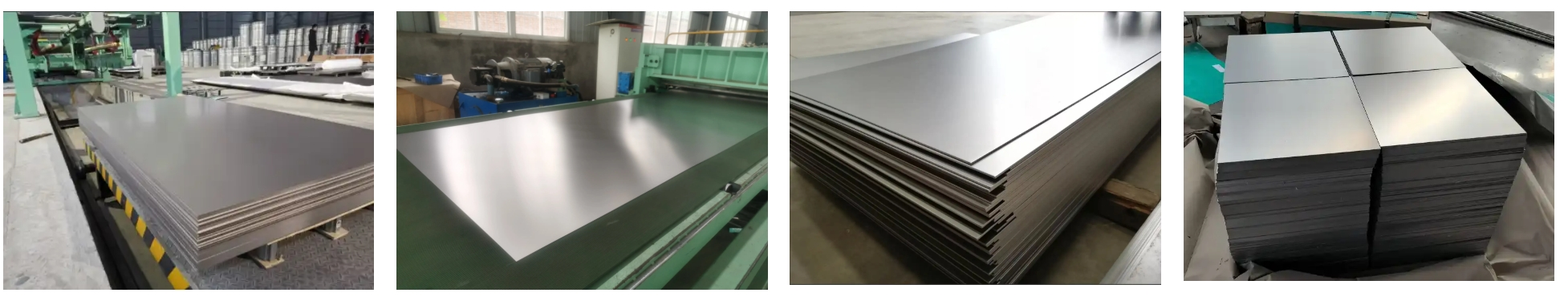

product-1954-375

Inconel 718(Gh4169/UNS N07718)
Chemical Composition	%	Ni	Cr		Fe	Mo	Nb		C	Mn	Si	S	P	Cu	AL	Ti	B
	min	50	17		margin	2.8	4.75							0.20	0.65
	max	55	21		margin	3.3	5.50		0.08	0.35	0.35	0.015	0.015	0.30	0.08	1.15	0.006
Physical Characteristics	Density				8.24g/cm³
	Melting point				1260-1320℃
Minimum mechanical properties of alloys at room temperature	Typical mechanical properties			Tensile strength Rm N/mm²				Yield strength RP0.2 N/mm²				Elongation A5%			Brinell hardness HB
	Solution treatment			965				550				30			≤363

Material Characteristics

High Strength & Toughness: Maintains mechanical integrity under extreme conditions.

Oxidation & Corrosion Resistance: Performs well in harsh environments, including seawater, acidic, and high-temperature conditions.

Excellent Weldability: Can be easily fabricated and welded without post-weld cracking.

Versatile Applications: Used in both low and high-temperature conditions.3

Quality Inspection

Applications of Inconel 718 Sheet

Industries Served:

Aerospace: Jet engines, turbine blades, and structural components.

Energy: Gas turbines, nuclear reactors, and power plants.

Automotive: High-performance exhaust systems and turbocharger components.

Chemical Processing: Heat exchangers, reactors, and piping systems.

Marine & Offshore: Subsea components and high-strength fasteners.

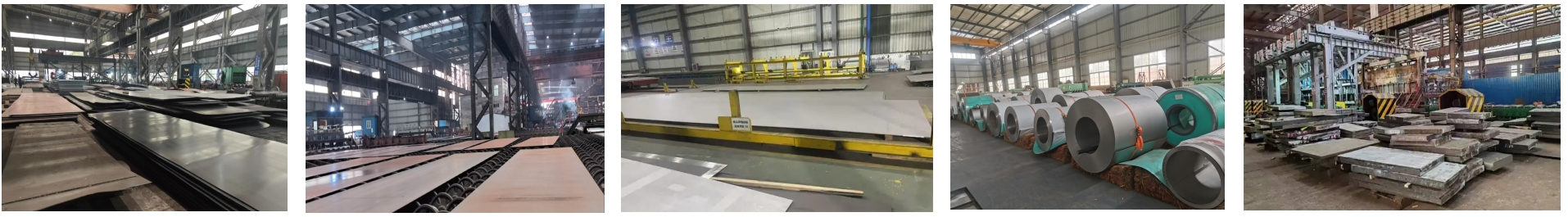

Factory

Our Service

We are looking for partners around the world to expand our business.

Customized service

Support full-dimensional customization of size, composition, performance, etc., accurately matching diversified scenario needs.

Ultra-flat surface treatment

mirror polishing (Ra≤0.2μm) or sandblasting (Ra 1.6-3.2μm), meet the cleanliness requirements of semiconductors and medical equipment.

Precision rolling process

hot rolling + cold rolling dual process, thickness range 0.1mm-50mm, tolerance accuracy ±0.01mm (thin plate).

Data support

Provide you with product-related technical data and information, such as material reports, performance test reports, etc., to facilitate your project design and quality control.

Processing value-added services

Provide CNC processing, cutting, welding, surface treatment (such as polishing, electroplating) and other value-added services to meet the diverse needs of customers.

Reliable global supply

With global distribution capabilities, we can provide reliable logistics solutions no matter where customers are

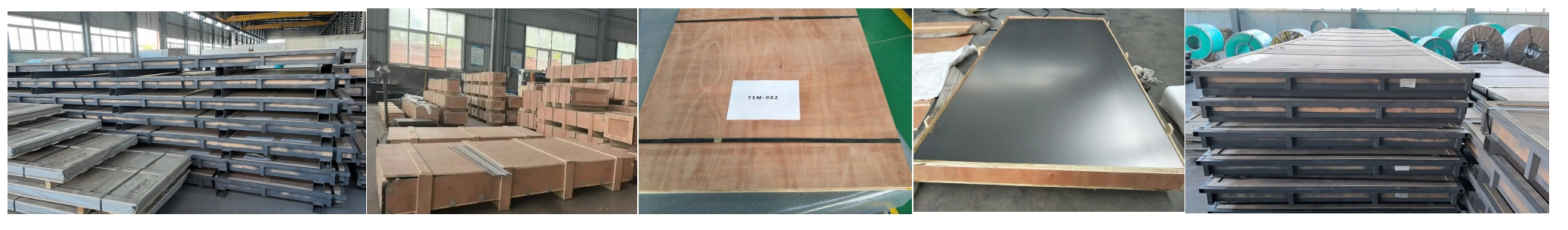

Package

package

FAQ

1. What sizes and thicknesses are available for Inconel 718 Sheets?

We offer thicknesses ranging from 0.1mm to 100mm, with custom dimensions available upon request.

2. What certifications does TSM Technology provide?

Our products comply with ASTM, JIS, AISI, GB, DIN, and EN standards, and we provide ISO 9001, ISO 14001, and ISO 45001 certifications.

3. Can Inconel 718 Sheet be welded?

Yes, Inconel 718 is highly weldable with excellent post-weld mechanical properties.

4. How can I place an order?

Contact Us for Inconel 718 Sheet Inquiries

For high-performance Inconel 718 Sheet, trust TSM Technology Co., Ltd. Reach out today for a quote, sample, or technical consultation! Email: info@tsmnialloy.com
