Inconel 617 Tube

Name: Inconel 617 Tube
SKU: N/A

3 factories*8 production lines*100+ machines
Grade: Inconel 617 (UNS N06617)
Standard: ASTM B168, ASME SB168, EN 10095
OD: 6.0-114 mm
WT: 0.5-15 mm
Length: Max 15000 mm
Customization and processing supported
Surface treatments：Sandblasting/Anodizing
Material Certification: MTC and SGS test reports available
Provide Free sample

Send Inquiry

Download

Product Description

Inconel 617 Tube: High-Performance Solution for Extreme Environments

When reliability in extreme conditions matters, Inconel 617 Tube stands as a top-tier choice for aerospace, energy, and industrial applications. Engineered to withstand temperatures up to 1200°C while maintaining structural integrity, our tubes combine nickel-chromium-cobalt-molybdenum alloy excellence with precision manufacturing. Certified to ASTM B163, ASME SB-168, and EN 10095 standards, these tubes deliver unmatched oxidation resistance and creep strength—perfect for jet engines, nuclear reactors, and corrosive chemical processing systems.

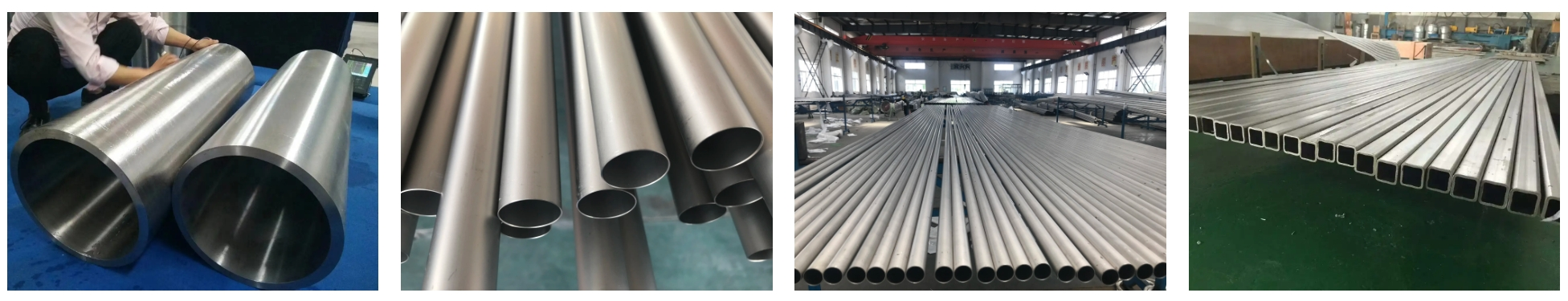

Inconel 617 Tube

Key Specifications

Outer Diameter	6 mm – 300 mm
Wall Thickness	0.5 mm – 20 mm
Length	Custom cuts up to 15 meters
Surface Finish	Seamless cold-drawn, optional sandblasting/anodizing
Tolerances	±0.01 mm (ID/OD), straightness ≤ 0.1 mm per meter

Rigorous Quality Assurance Process

1. Material Verification

PMI testing to confirm alloy composition

2. Non-Destructive Testing

Ultrasonic inspection for subsurface defects
Eddy current testing for surface cracks

3. Performance Validation

1000-hour creep rupture testing at 900°C
Intergranular corrosion checks per ASTM G28

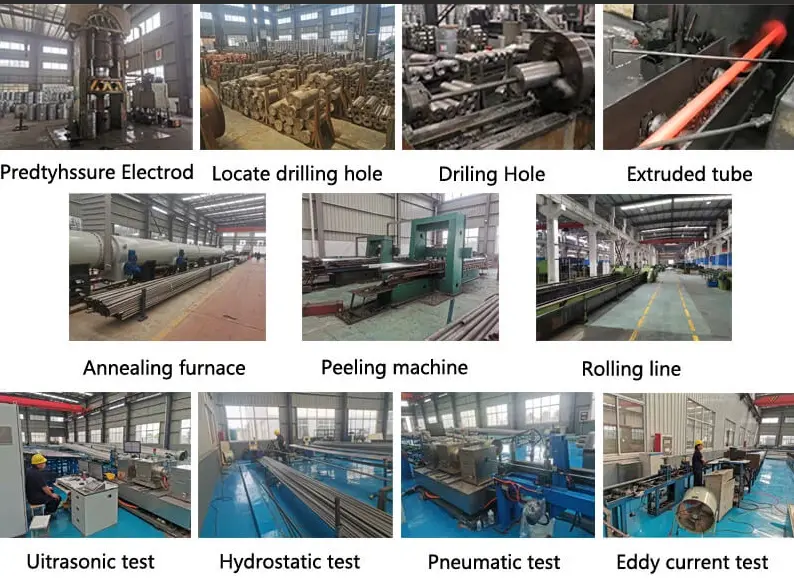

Process of 617 Tube

Introduction to INCONEL® Alloy 617

INCONEL® alloy 617 is a nickel-chromium-cobalt-molybdenum alloy renowned for its exceptional high-temperature strength and oxidation resistance. Its robust chemical composition, coupled with superior mechanical properties and availability in various forms and sizes, makes it indispensable for critical applications requiring reliability and performance under extreme conditions.

By understanding its chemical composition, mechanical properties, applications, and adherence to production standards, engineers and designers can leverage the unique capabilities of INCONEL® alloy 617 to enhance operational efficiency and ensure long-term durability.

For detailed technical specifications and further inquiries, please refer to the specific product data sheets and consult with TSM Technology.

Chemical Composition of INCONEL® Alloy 617

INCONEL® alloy 617 is meticulously engineered with a specific chemical composition to optimize its performance under high-temperature and corrosive conditions

Element

Nickel (Ni)

Chromium (Cr)

Cobalt (Co)

Molybdenum (Mo)

Iron (Fe)

Aluminum (Al)

Titanium (Ti)

Manganese (Mn)

Silicon (Si)

Carbon (C)

Phosphorus (P)

Sulfur (S)

Composition (%)

44.5-56.0

20.0-24.0

10.0-15.0

8.0-10.0

3.0 max

0.4-1.0

0.6-1.4

0.5 max

0.05-0.15

0.015 max

Mechanical Properties of INCONEL® Alloy 617

INCONEL® alloy 617 exhibits excellent mechanical strength and durability across a wide range of temperatures:

Property	Value
Tensile Strength	760 MPa (110 ksi) min
Yield Strength (0.2% offset)	350 MPa (51 ksi) min
Elongation	30% min
Hardness (Brinell)	241 max (annealed condition)
Density	8.42 g/cm³

Corresponding Grades in Different Countries

INCONEL® alloy 617 is known by different grades in various countries and regions:

Country/Region	Grade
USA	UNS N06617
Germany	2.4663
France	NC22KDA

Production Standards

INCONEL® alloy 617 adheres to several international production standards:

Standard	Description
ASTM B166	Bars, rods, and wires
ASTM B168	Sheets, plates, and strips
ASTM B167	Seamless pipes and tubes
ASTM B517	Welded tube
ASTM B516	Welded pipe
ASTM B564	Forgings
ASTM B366	Fittings

Industry-Specific Solutions

Aerospace

Oil & Gas

Heat exchangers and condensers

Why Choose Our Inconel 617 Tubes?

Global Compliance & Traceability

Every batch includes:

Mill Test Reports (EN 10204 3.1)
Hydrostatic Test Certificates (1.5x working pressure)
ASME III Nuclear Stamp (for reactor applications)

Unmatched High-Temperature Performance

Our Inconel 617 Tube retains 98% of its yield strength at 980°C—outperforming standard alloys in prolonged thermal cycling. Third-party validated test results show 3x longer oxidation resistance compared to Inconel 625 in jet engine afterburner simulations.

Precision Manufacturing for Critical Applications

With 14+ years of metallurgical expertise, we produce tubes meeting AS9100D aerospace standards and NACE MR0175 sour service requirements. Proprietary extrusion technology ensures defect-free microstructures confirmed by 100% ultrasonic testing (ASTM E213)
