Inconel 617 Sheet

Name: Inconel 617 Sheet
SKU: N/A

3 factories*8 production lines*100+ machines
Grade: Inconel 617 (UNS N06617)
Standard: ASTM B168, ASME SB168, EN 10095
Thickness: 0.5-50 mm
Width: 1000-2000 mm
Customization and processing supported
Surface treatments：Sandblasting/Anodizing
Material Certification: MTC and SGS test reports available
Provide Free sample
Payment: T/T, L/C negotiable

Send Inquiry

Download

Product Description

Inconel 617 Sheet: High-Temperature Nickel Alloy for Aerospace & Energy Applications

When your projects demand materials that thrive in extreme heat and corrosive environments, Inconel 617 Sheet delivers unmatched performance. As a nickel-chromium-cobalt-molybdenum superalloy, it's engineered for aerospace turbines, nuclear reactors, and petrochemical systems requiring sustained strength above 900°C. With over 14 years of niche expertise, we supply precision-manufactured sheets that meet ASTM B168 standards, backed by full traceability and global compliance.

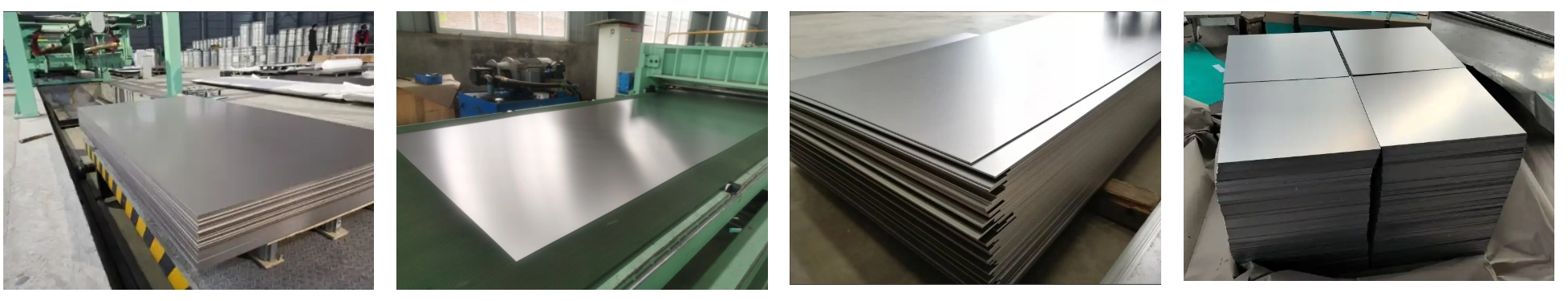

Inconel 617 Sheet

Technical Specifications

Property	Details
Standards	ASTM B168, ASME SB168, AMS 5884
Thickness	0.1–50mm (±0.025mm tolerance)
Width/Length	100–2000mm (Custom-cut)
Composition	Ni (44–46%), Cr (20–24%), Mo (8–10%), Co (10–12%), Al (0.8–1.5%)
Tensile Strength	≥760 MPa
Surface Finish	Annealed, Pickled, Sandblasted, or Mirror Polished (Ra 0.8µm)

Why Choose Our Inconel 617 Sheet?

1. Aerospace-Grade Durability

Optimized through proprietary thermo-mechanical processing, our products exhibit superior creep resistance (tested at 950°C for 1,000+ hours) and microstructural stability. Ideal for jet engine combustors and turbine blades, they retain ≥85% yield strength even after prolonged thermal cycling.

2. Precision Manufacturing

Our 100+ CNC machines, including five-axis machining centers, achieve ±0.02mm thickness tolerances and flatness within 0.1mm/m². Whether you need ultra-thin 0.5mm sheets for heat shields or 50mm plates for structural components, we ensure dimensional accuracy.

3. Corrosion & Oxidation Defense

A protective chromium oxide layer forms on the surfaces of Inconel 617 sheets, as validated by ASTM G28 intergranular corrosion testing. This makes it resistant to sulfur compounds in exhaust systems and helium embrittlement in nuclear reactors.

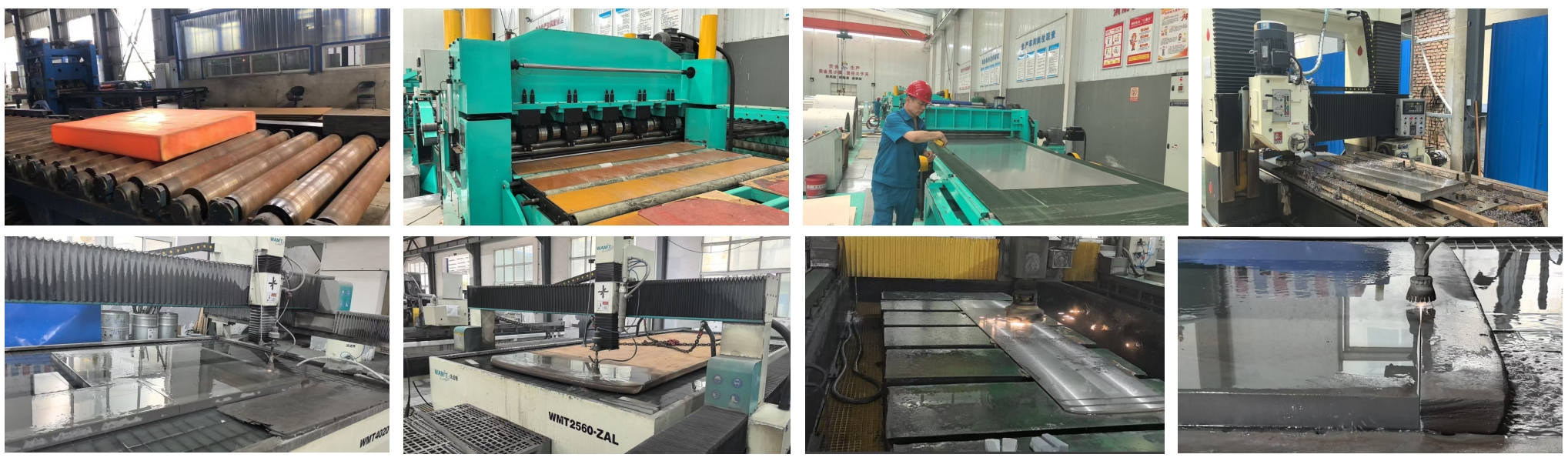

Quality Assurance

Quality Assurance You Can Rely On

100% Material Traceability: XRF-verified raw materials and UT/RT-tested sheets.

Full Documentation: MTRs, EN 10204 3.1 certificates, and AS9102 FAIR reports.

Certifications: AS9100D, ISO 9001, and AS9120

Trusted in Critical Applications

Jet Engine Components

Withstand 980°C cyclic oxidation (1,000+ hours tested) in combustor liners and exhaust nozzles.

Nuclear Reactor Heat Exchangers

Proven performance in Generation IV reactors, resisting helium coolant-induced cracking.

Petrochemical Reactors

Zero pitting corrosion in H₂S-rich environments, compliant with NACE TM0177 standards.

Customization & Processing Services

Leverage our smart factory capabilities for:

Laser/Plasma Cutting: Precision cuts with ±0.1mm accuracy.
EDM Drilling & Thread Rolling: Complex hole patterns for fuel system components.
Hydroforming: Shape sheets into curved or angled geometries without cracking.

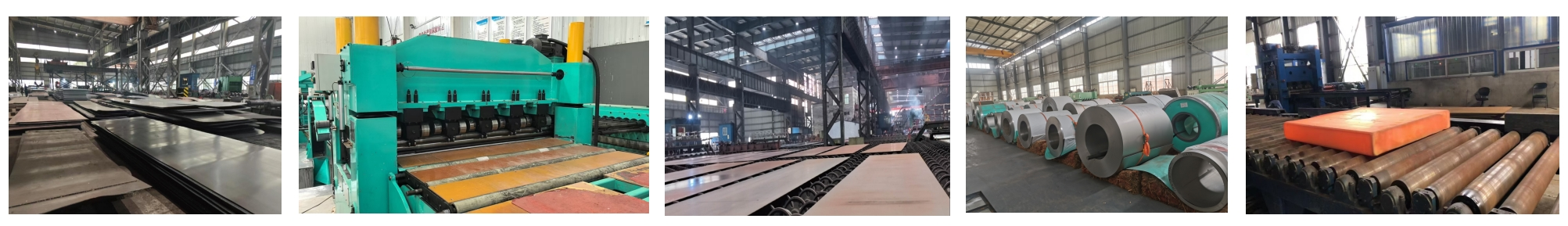

Factory
