Hastelloy C276 Sheet

Name: Hastelloy C276 Sheet
SKU: N/A

Brand: TSM Technology
3 factories*8 production lines*100+ machines
Supply Ability: 300 Tons/month
Standard:ASTM，JIS，AISI，GB，DIN，EN
Form:Plate,Sheet,Coils, Foils, Strip, Flats
Thickness:0.1 milimeter to 100 milimeter Thk
Technique：Cold rolling, hot rolling, solution, annealing
Customized size and processing are supported
Delivery time: Usually about 10-25 days
Provide a Free sample
Payment way: T/T, L/C, can be negotiated

Send Inquiry

Download

Product Description

Your Trusted Supplier for Hastelloy C276 Sheet

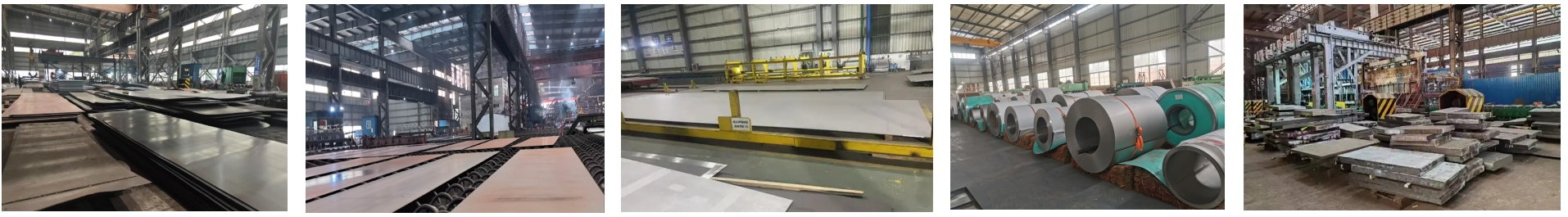

TSM Technology stands as a premier producer of specialty metal products, specializing in high-grade Hastelloy C276 Sheets that offer outstanding resistance to corrosion in extreme working conditions. Operating from a 3,200㎡ modern production facility equipped with over 100 sets of machinery across 3 plants and 8 dedicated lines, we maintain full in-house control from raw material smelting to final precision processing.

All our Hastelloy C276 plates meet international specifications, including ASTM, ASME, and EN, backed by ISO 9001, AS9100D, and AS9120 certifications. These credentials ensure material excellence for sectors such as chemical engineering, offshore, and power generation. With more than 14 years of industry experience and a distribution network spanning over 50 nations, we supply certified high-performance materials capable of performing in the most severe service settings globally.

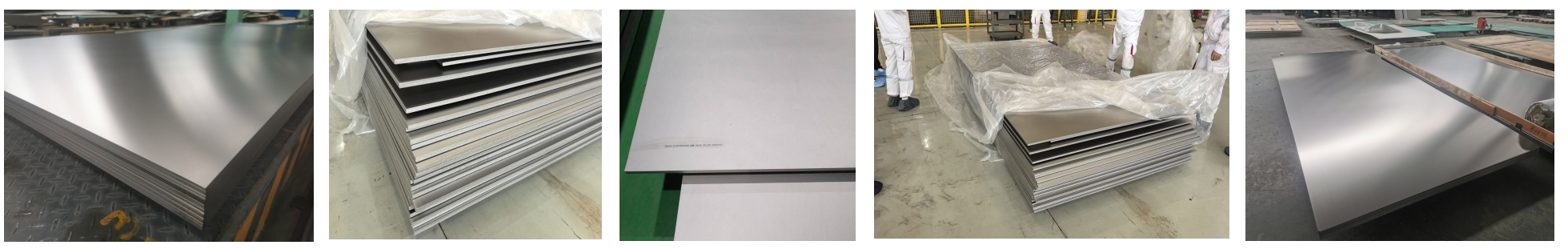

What is Hastelloy C276 Sheet?

Hastelloy C276 Sheet is a nickel-molybdenum-chromium superalloy designed for extreme corrosion resistance. It offers exceptional performance in highly aggressive environments, including chemical plants, marine applications, and high-temperature processing industries. Its outstanding weldability and resistance to stress corrosion cracking make it a preferred choice for engineers and manufacturers handling severe service conditions.

Supply type

Hastelloy C276 Sheet supply types include cold-rolled sheet (thickness 0.1-5mm), hot-rolled sheet (6-50mm), width 1000-2000mm, length can be customized, support striping, cutting and solution treatment.

plate

Strip

Coil

Product Specifications

Standard: ASTM B575、ASME SB575

Form: Plate, Sheet, Coils, Foils, Strip, Flats

Thickness: 0.1mm to 100mm

Technique: Cold rolling, hot rolling, solution annealing

Customization: Sizes and processing available

Payment Terms: T/T, L/C (Negotiable)

Hastelloy C-276(UNS N10276W.Nr.2.4819/NS336)
Chemical Composition	Alloy	%	Ni		Cr	Fe	Mo		C	Mn	Si	S	P	Co	V	W
	Hastelloy C	min	margin		14.5	4	15									3
		max	margin		16.5	7	17		0.08	1	1	0.03	0.04	2.5	0.35	4.5
	C276	min	margin		14.5	4	15									3
		max	margin		16.5	7	17		0.01	1	0.08	0.03	0.04	2.5	0.35	4.5
Physical Characteristics	Density					8.9g/cm³
	Melting point					1325-1370℃
Minimum mechanical properties of alloys at room temperature	Typical mechanical properties			tensile strength Rm N/mm²				Yield Strength RP0.2 N/mm²			Elongation A5%			Brinell hardness HB
	Solution treatment			690				283			40

Material Characteristics

Superior Corrosion Resistance: Outstanding resistance to oxidizing and reducing environments.

Excellent Weldability: Minimal carbide precipitation during welding, preventing intergranular corrosion.

High Strength & Durability: Suitable for extreme conditions, including high temperatures and pressure.

Non-Magnetic: Suitable for specialized applications requiring non-magnetic properties.

Hastelloy C276 Sheet

Applications of Hastelloy C276 Sheet

Hastelloy C276 Sheet is widely used in industries requiring extreme corrosion resistance and durability:

Chemical Processing: Heat exchangers, pressure vessels, and piping systems.

Aerospace & Defense: Components exposed to aggressive environments.

Marine & Offshore: Desalination plants, shipbuilding, and oil & gas applications.

Energy Sector: Nuclear reactors, geothermal power plants, and pollution control equipment.

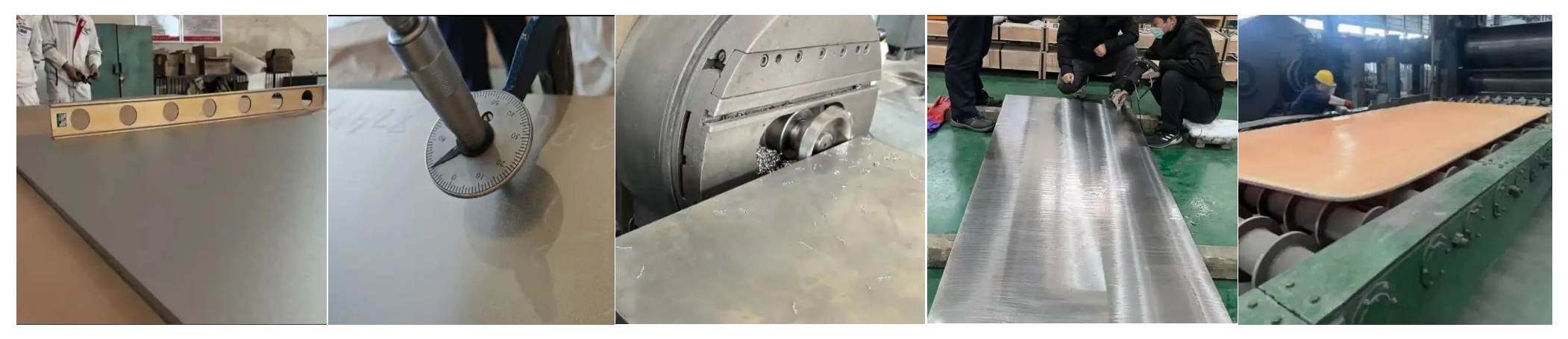

Testing Methods

Inspection Type	Standards / Methods	Content / Scope
Standards	ASTM B162, B168, B463	Product testing and compliance requirements
Chemical Composition	OES, XRF, ICP	Analysis of alloying elements
Mechanical Tests	Tensile, Yield, Elongation, Hardness, Bend Test	Evaluation of mechanical performance
Non-Destructive Testing	UT (Ultrasonic), PT (Liquid Penetrant)	Detection of internal and surface defects
Dimensional Inspection	Thickness, Width, Length, Flatness	Dimensional accuracy and conformity
Surface Inspection	Visual Examination	Surface quality and appearance check
